OR Doors
We plan, produce and install doors for medical and clean rooms. Our doors range from manual to automatic sliding and hinged doors. According to your requirements our doors are “Made in Germany”.
Sliding door

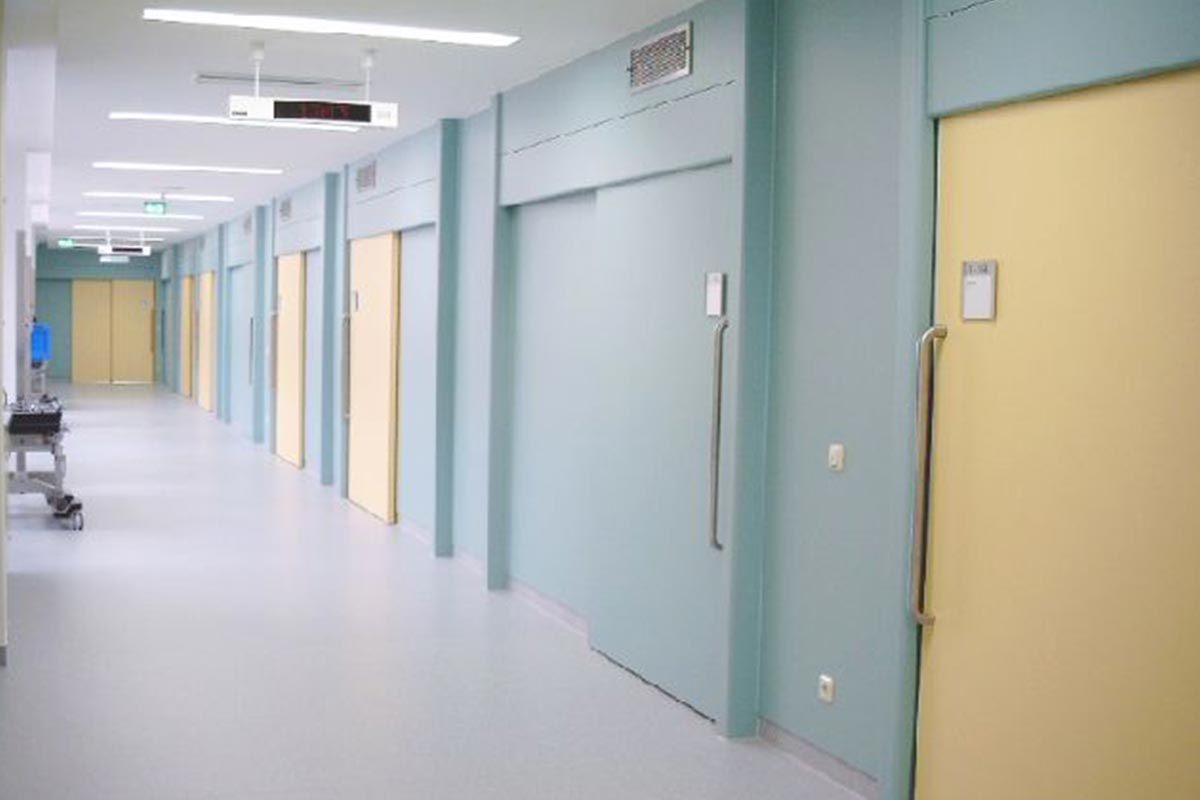

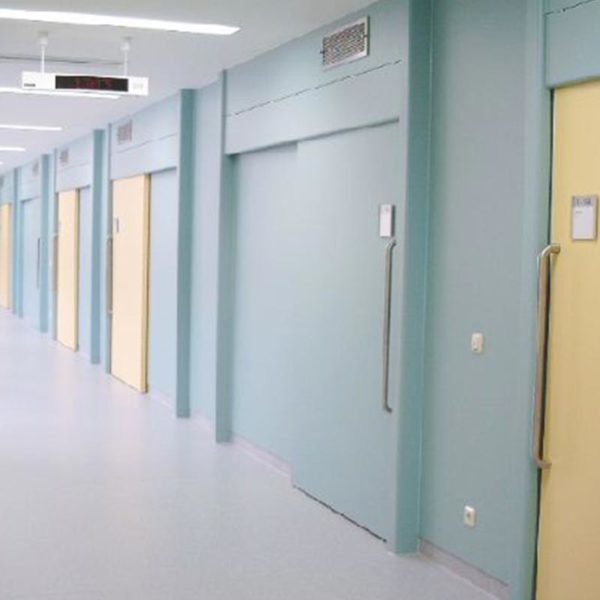

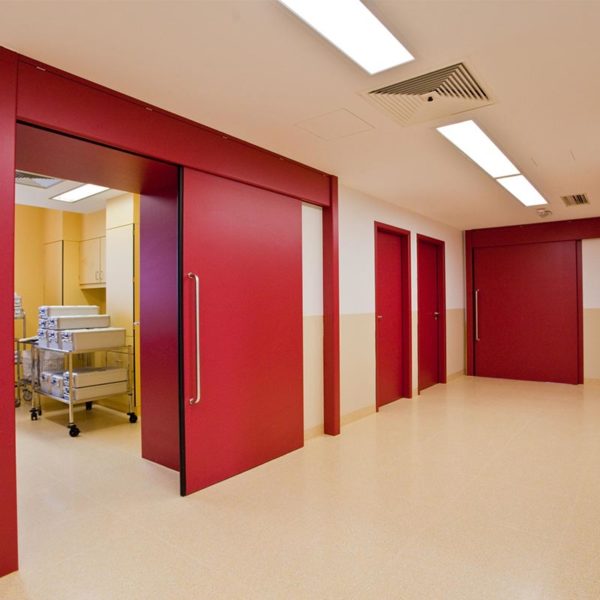

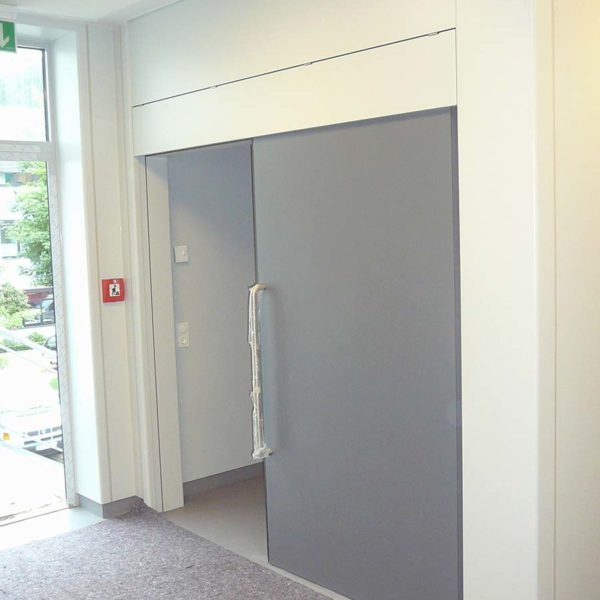

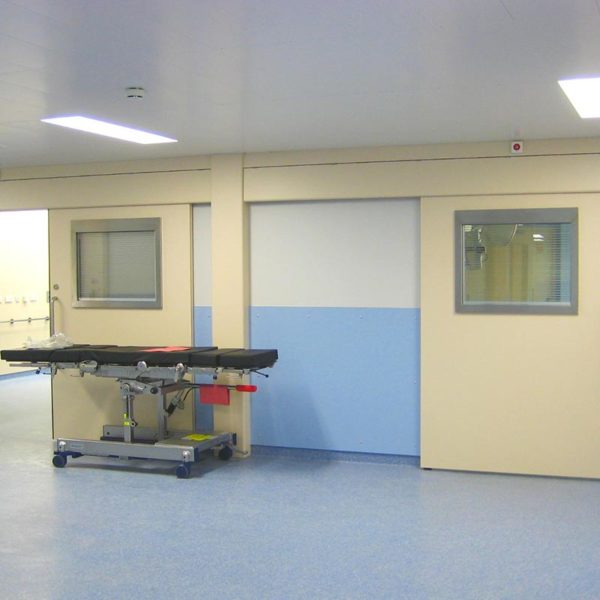

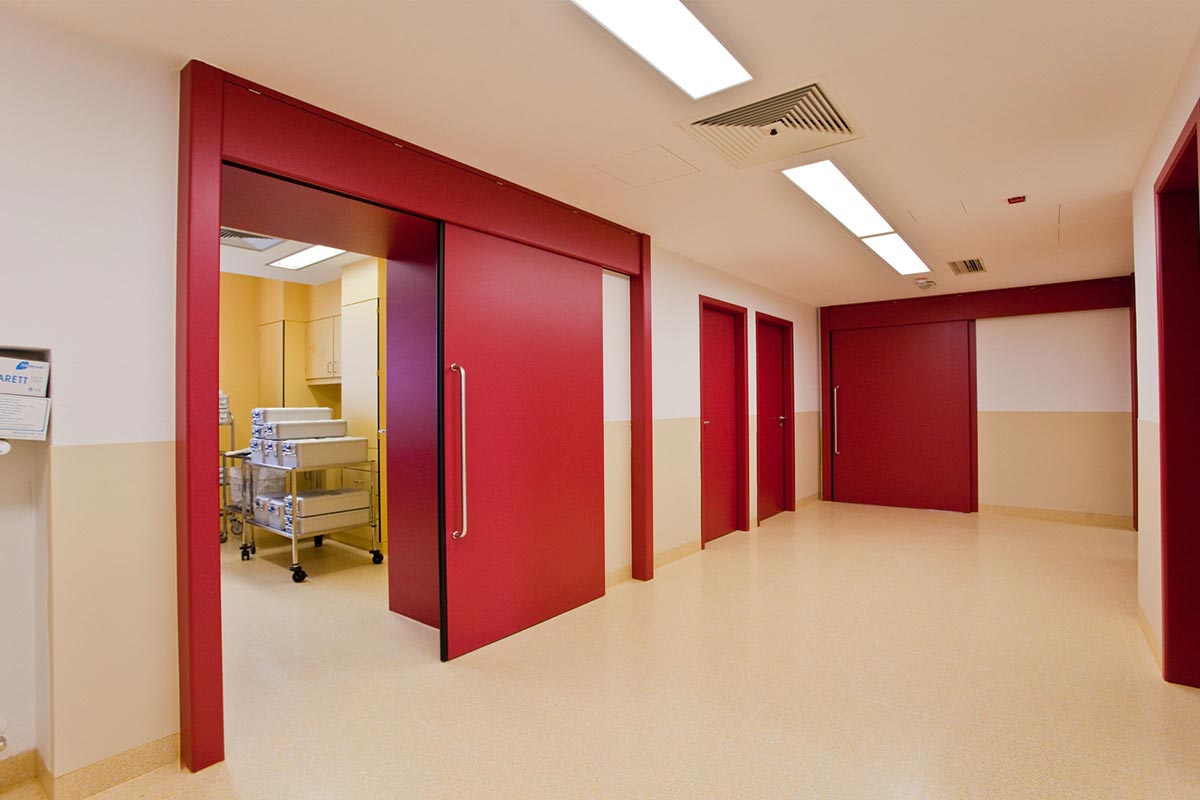

Sliding door systems for OR and functional rooms in different versions
The System

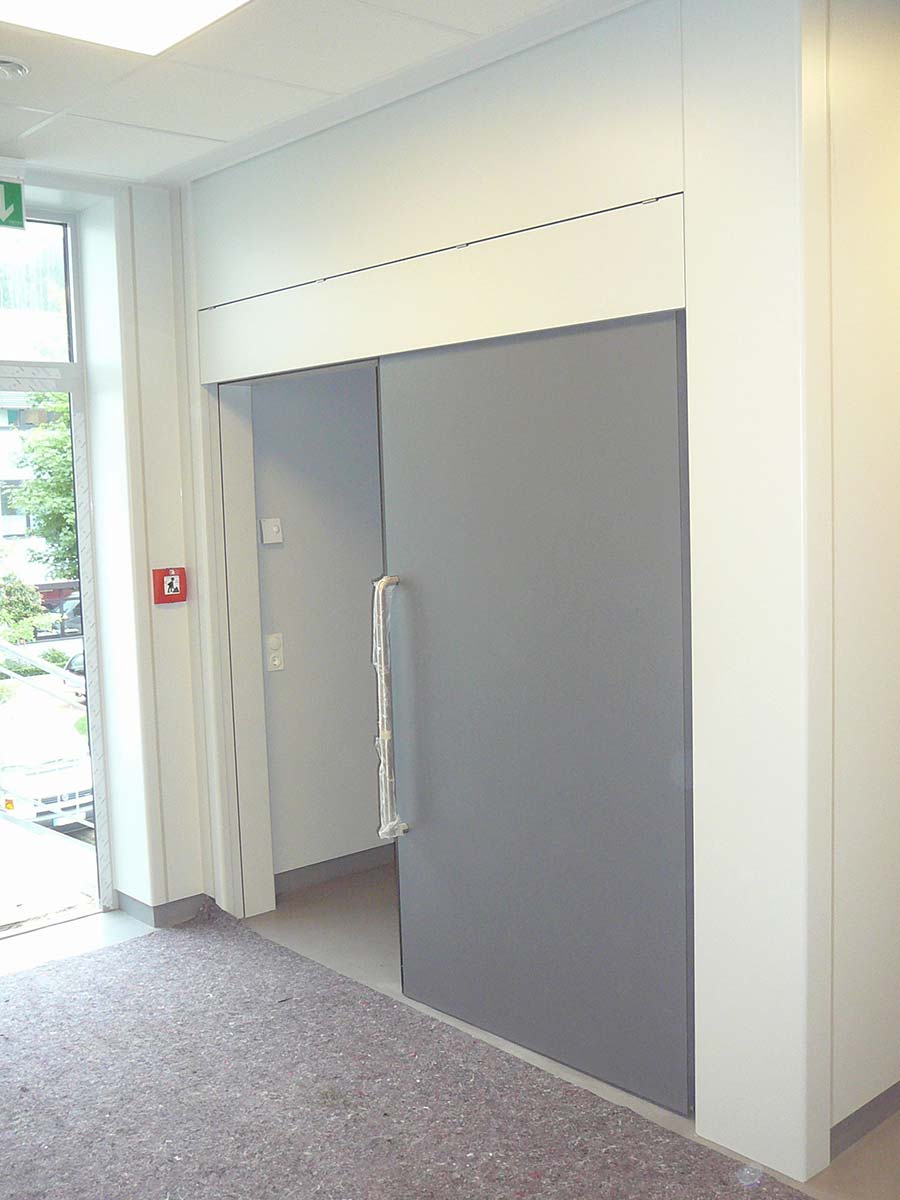

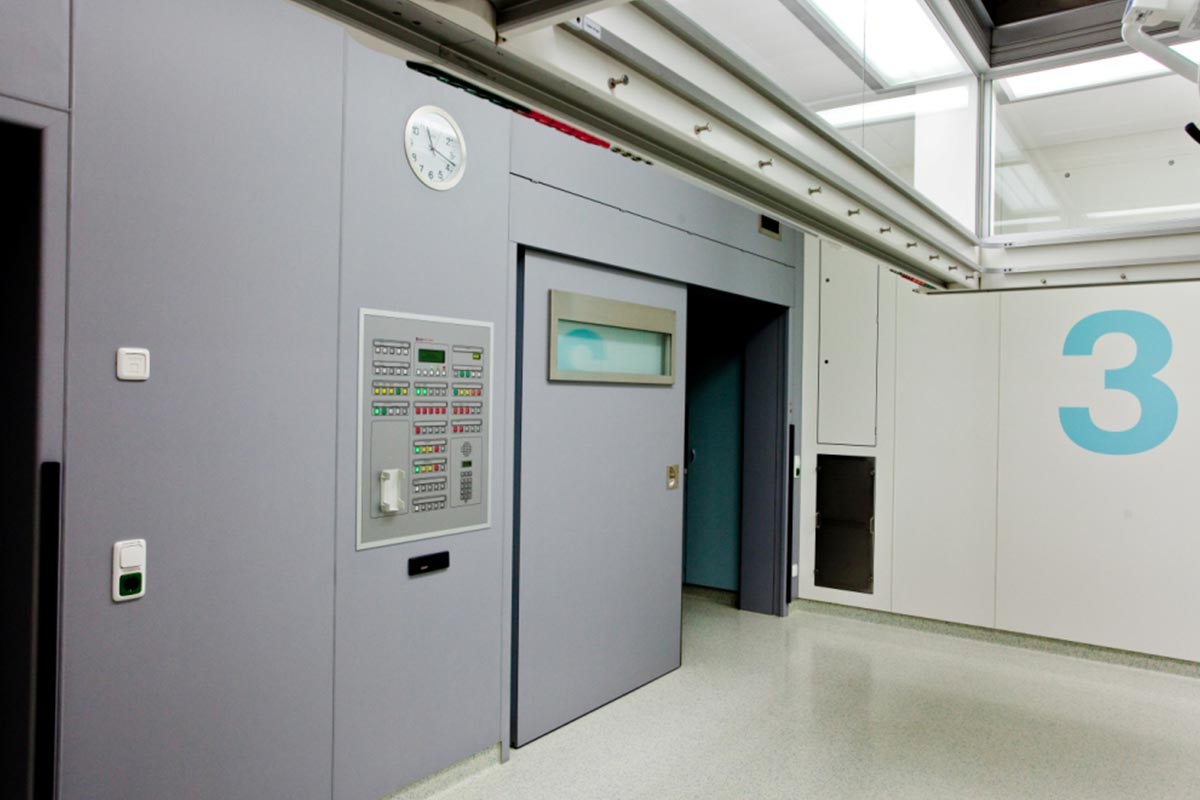

The sliding door frames and and runner boxes with HPL compact sheets are produced in moulding technology.
The door panels consist of massive composite sheets with 3 mm HPL compact sheet layers on both sides.

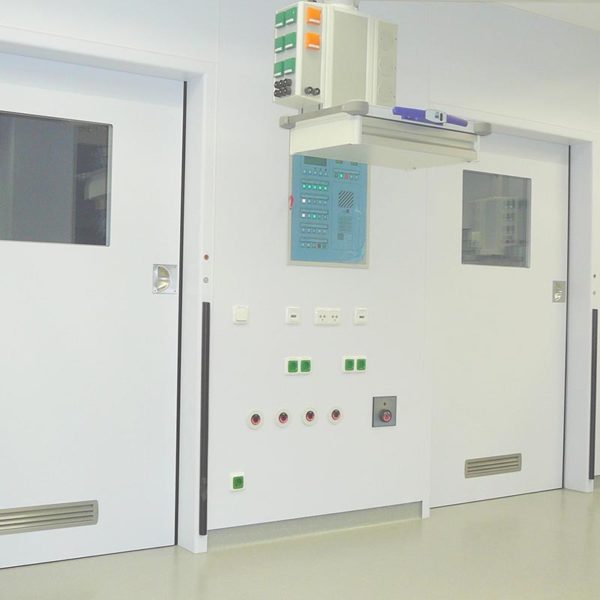

The door panels are available with stainlesss steel rod or shell handle, with visibility windows, electrical roller blind or electrical shade as well as radiation and laser protection according to customers‘ demands.
The runner box can be completely faced up to the lower edge of the prefabricated ceiling.

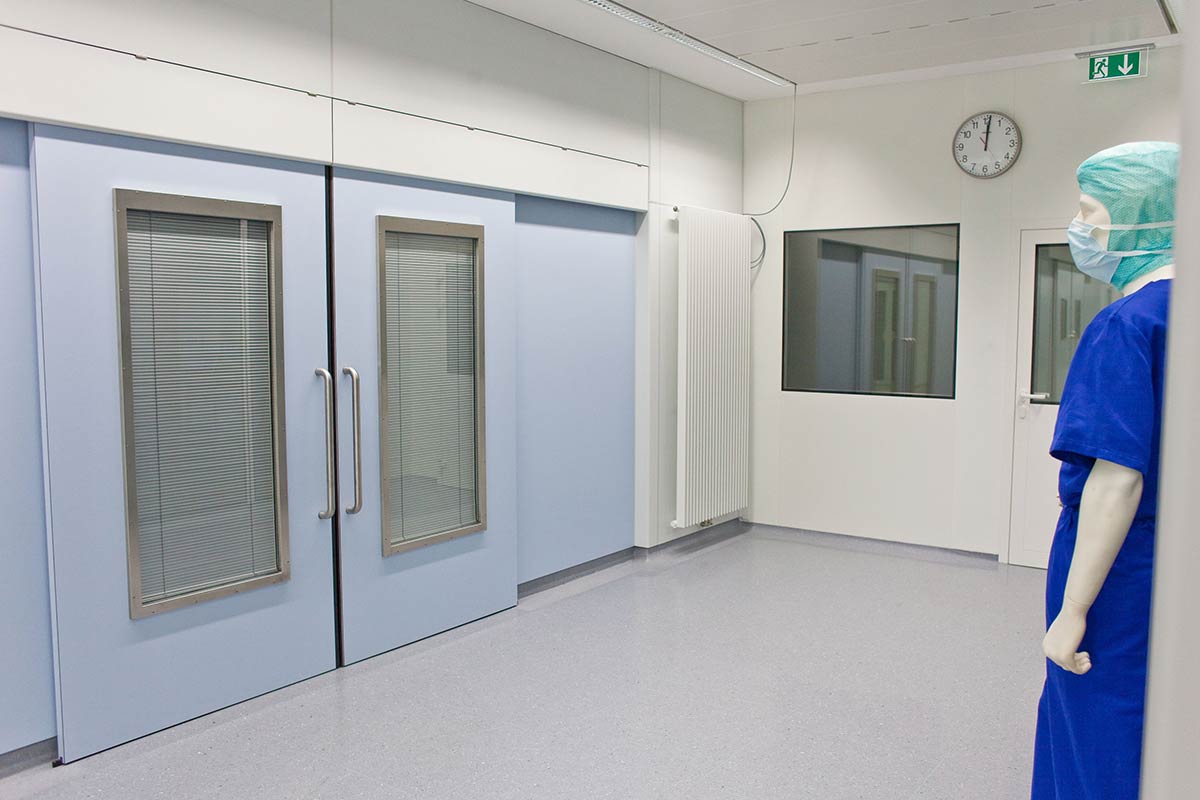

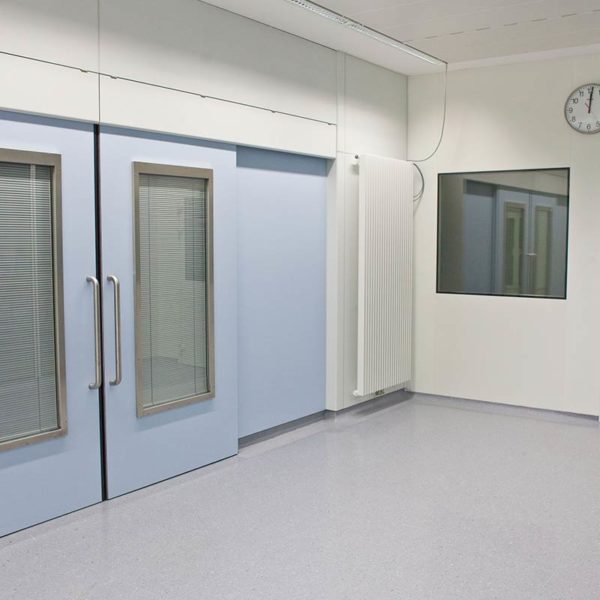

Model as 1-door, 2-door or telescope sliding system in front of the wall or running in the wall niche.
The System

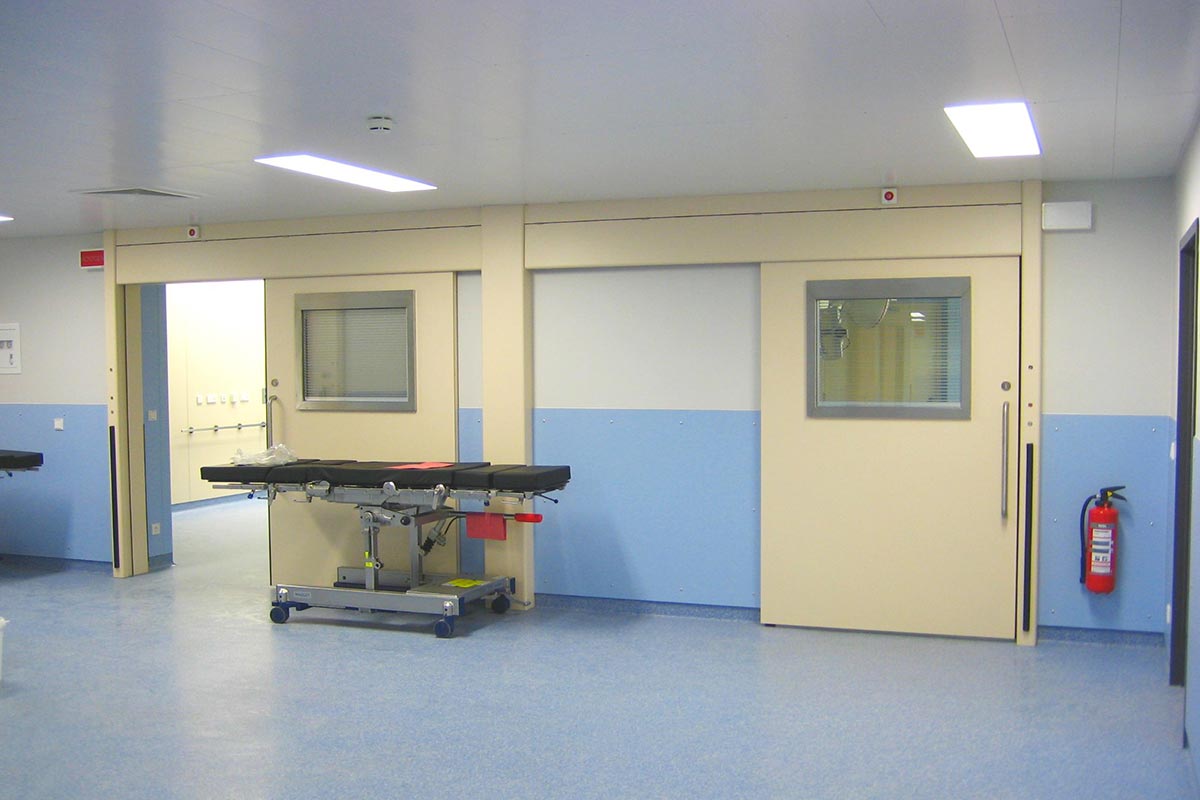

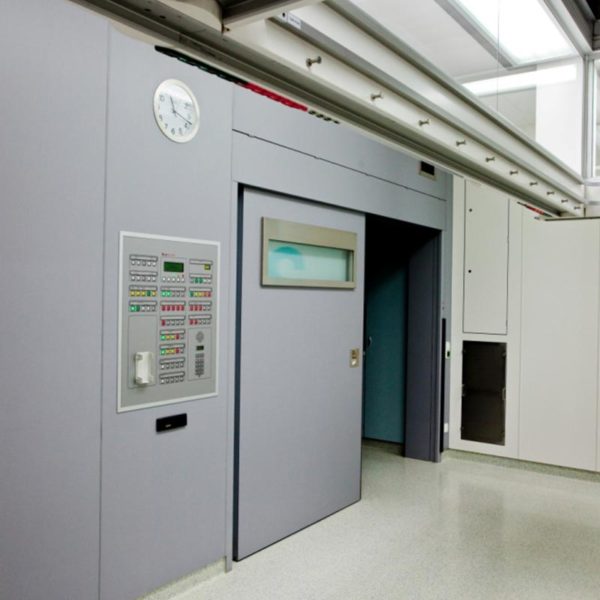

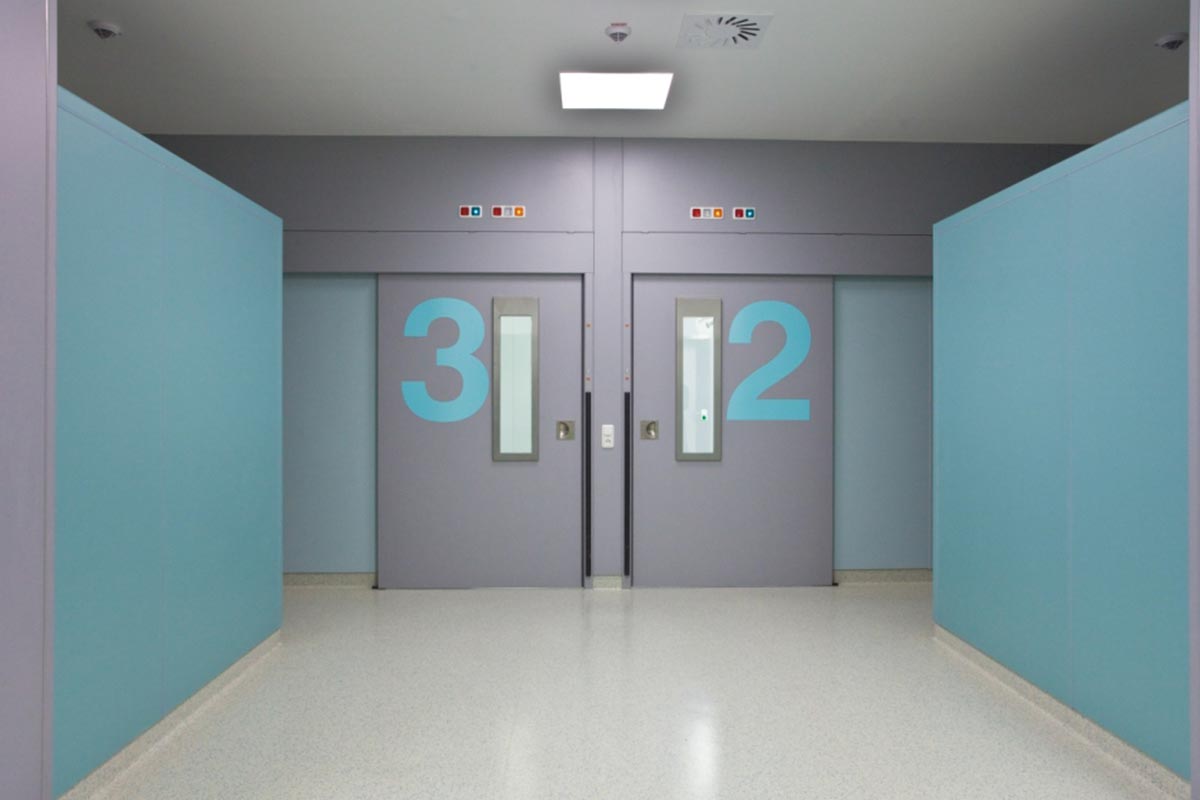

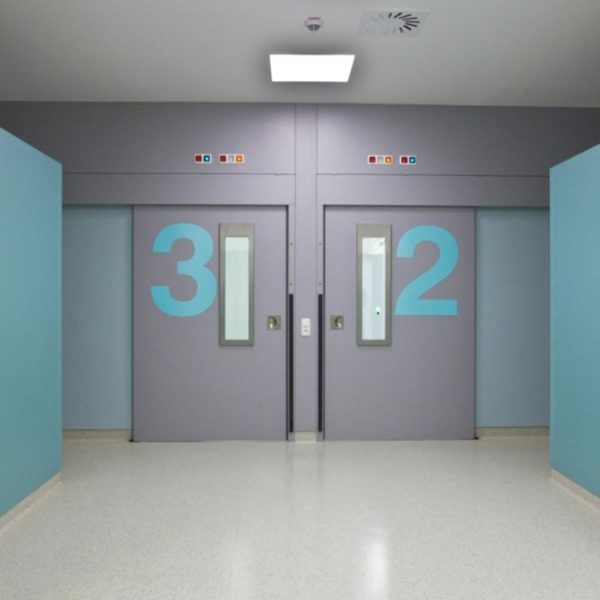

The sliding door systems can be equipped with an electric drive to be automatically operable. Automatic doors can be operated and controlled with operator buttons (can be integrated into door frame), non-contact buttons or with electric cleats. Power operated sliding door systems are equipped with safety installations according to EN 16005 after risk assessment and documented in an inspection book.
The powerful sliding door drive systems only need a minimal installation depth. These slim sliding door drives make elegant and architectonically attractive sliding door solutions possible.
They provide 100% power and dynamic in a minimal space with a maximum of possibilities. These strong points come into effect especially in sensitive areas. The drive systems are tailor-made fort he use in hospitals, clinics, retirement and nursing homes, institutes and laboratories. The compact construction guarantees a reliable and low-maintenance operation and avoids time-consuming services by technicians.
RANGE OF APPLICATION:
- healthcare: hospitals, clinics, retirement and nursing homes
- disability field: workshops, institutions, toilets, doors and rehabilition centres for disabled persons
- industry and trade: production entrances, doorways, exhibition rooms
- special construction: shipbuilding: cabin doors, luxury partitions
- gastronomy: service entrances in the kitchen area, guest entrances, airlocks
- conversion of hand-operated sliding doors to automatic operation
Das System

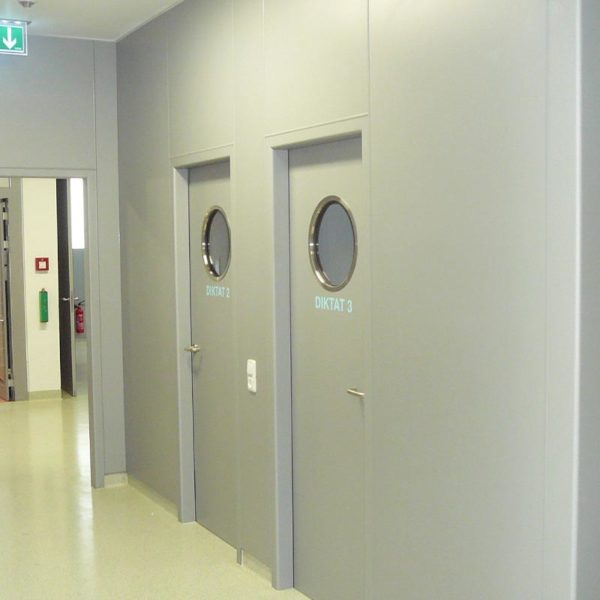

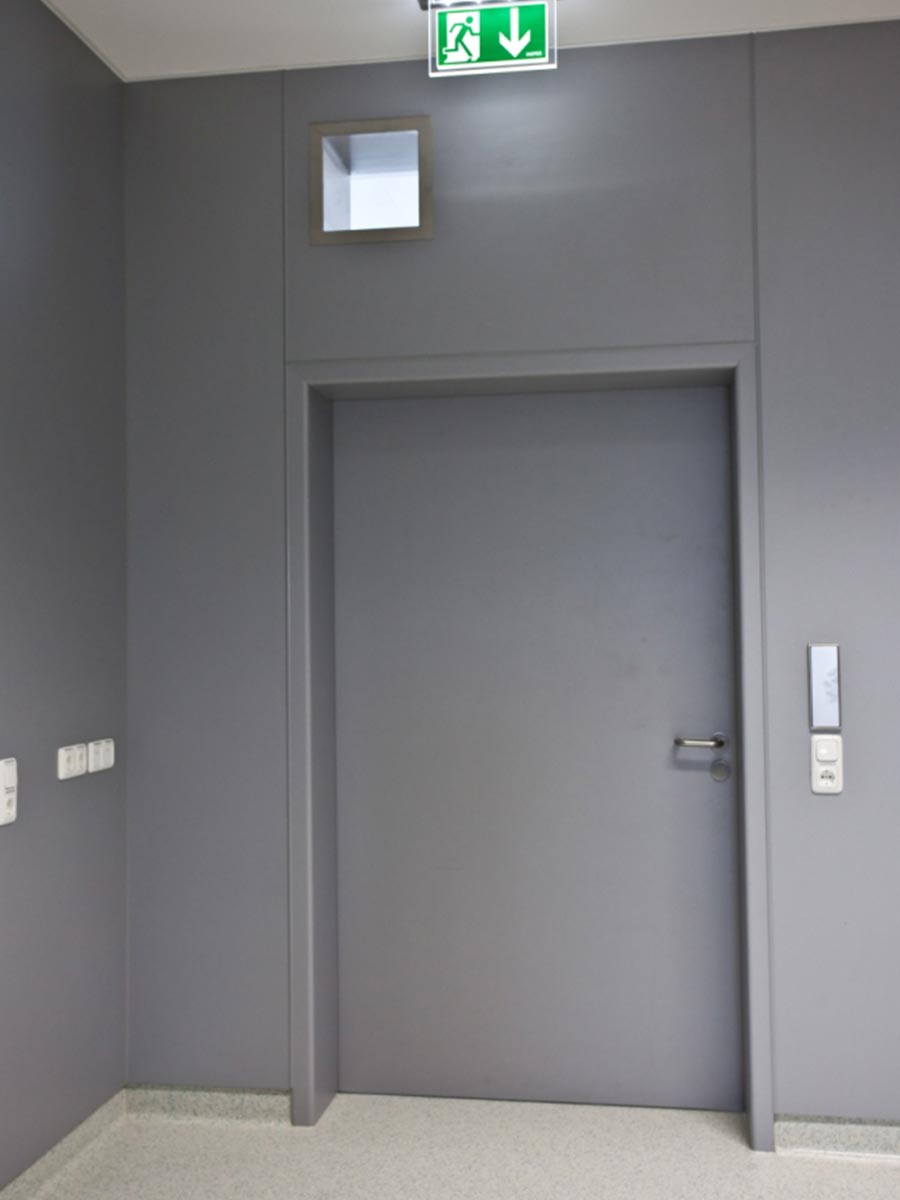

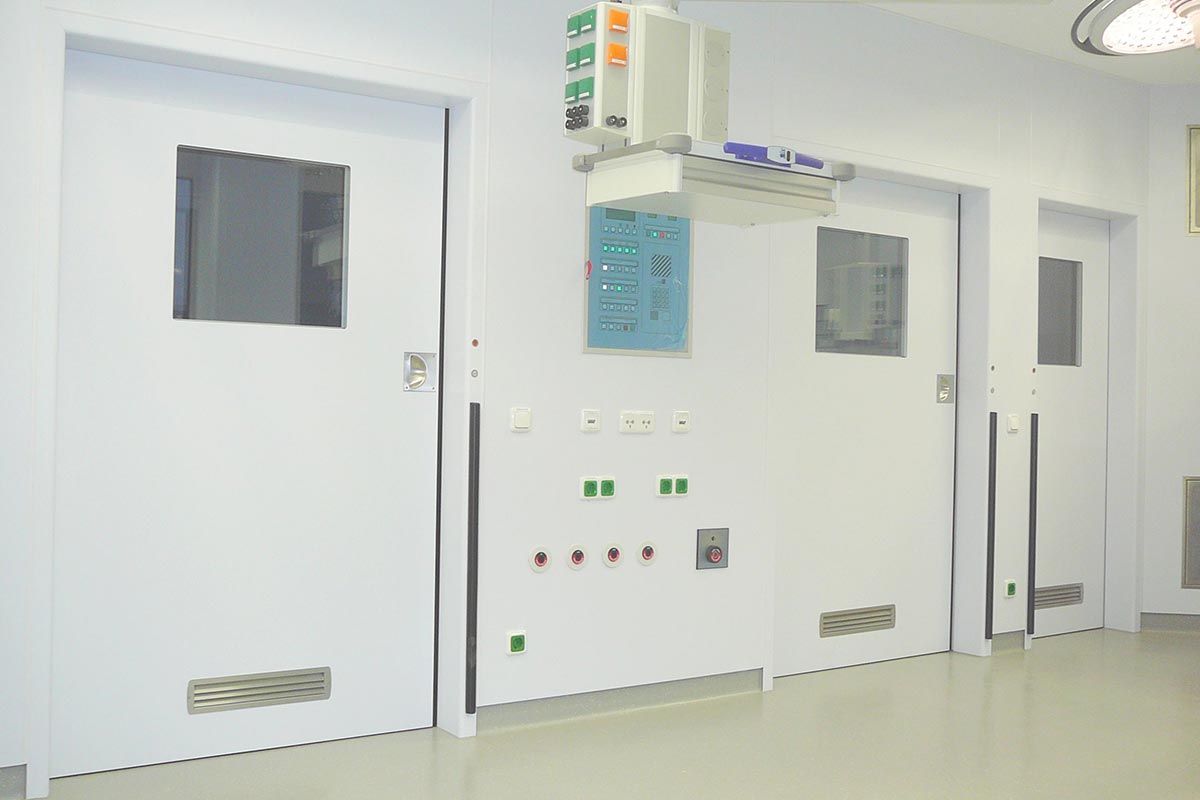

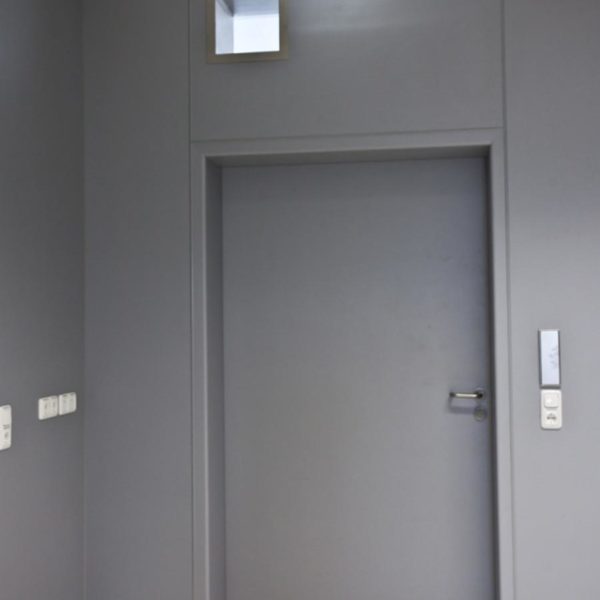

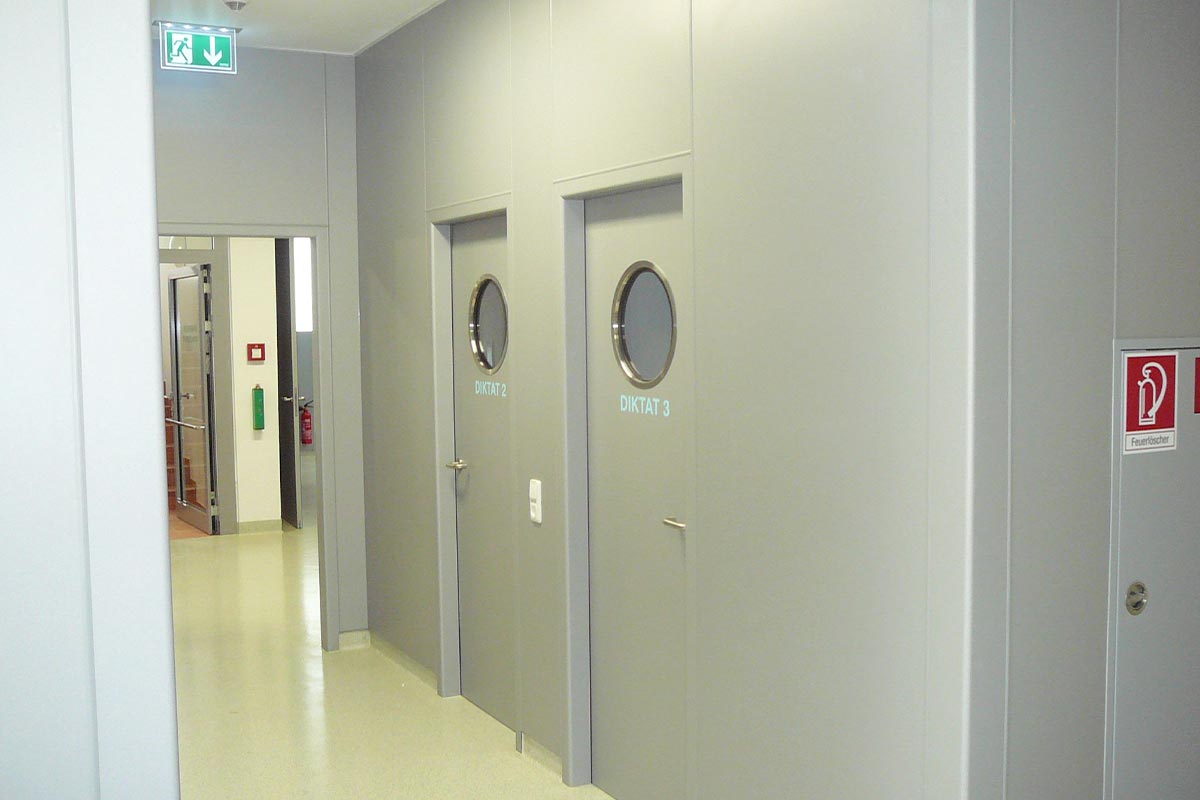

he door frames are produced in moulding technology from HPL compact sheets, unrebated door panels are made of massive composite sheets with 3 mm HPL compact sheet layers on both sides.
Simons stainless steel 3D hinges are milled on the door panel hinge side. You can choose between stainless steel door handle or stainless steel rod handle.
Installation of visibility windows with radiation and laser protection as well as interior electric roller blinds or shades according to customers‘ demands.
MEASUREMENTS
| Coordinating size | door clearance | width of element | GHK model no. |
| 625 x 2135 mm | 570 x 2093 mm | 584 x 2097 mm | DT-010 |
| 779 x 2135 mm | 695 x 2093 mm | 709 x 2097 mm | DT-020 |
| 905 x 2135 mm | 821 x 2093 mm | 835 x 2097 mm | DT-030 |
| 1029 x 2135 mm | 945 x 2093 mm | 959 x 2097 mm | DT-040 |
| 1154 x 2135 mm | 1070 x 2093 mm | 1084 x 2097 mm | DT-050 |
| 1279 x 2135 mm | 1195 x 2093 mm | 1209 x 2097 mm | DT-060 |
Further measurements on demand.
The System
Revolving door systems system can be equipped with an automatic drive, electrically operated, as power operated door.
The door system is controlled with large operator buttons, non-contact sensor buttons or additionally with electric wall cleat.
Automatic revolving doors are equipped with safety installations (eg sensor cleats on both sides) according to EN 16005 after risk assessment
Documented in an inspection book.
Measurements
| Coordinating size | door clearance | width of element | GHK-Model-No. |
| 625 x 2135 mm | 570 x 2093 mm | 584 x 2097 mm | DT-010 |
| 779 x 2135 mm | 695 x 2093 mm | 709 x 2097 mm | DT-020 |
| 905 x 2135 mm | 821 x 2093 mm | 835 x 2097 mm | DT-030 |
| 1029 x 2135 mm | 945 x 2093 mm | 959 x 2097 mm | DT-040 |
| 1154 x 2135 mm | 1070 x 2093 mm | 1084 x 2097 mm | DT-050 |
| 1279 x 2135 mm | 1195 x 2093 mm | 1209 x 2097 mm | DT-060 |
Further measurements on demand.
