Das OP-Wandsystem GHK-OPS in modularer Bauweise unter Verwendung von dekorativen Hochdruck-Schichtstoff-Platten (HPL gemäß DIN EN 438) mit antibakteriell wirkender Oberfläche, als raumhohe Wandpaneelverkleidung für Räume mit hohen und sehr hohen Anforderungen an die Keimarmut.

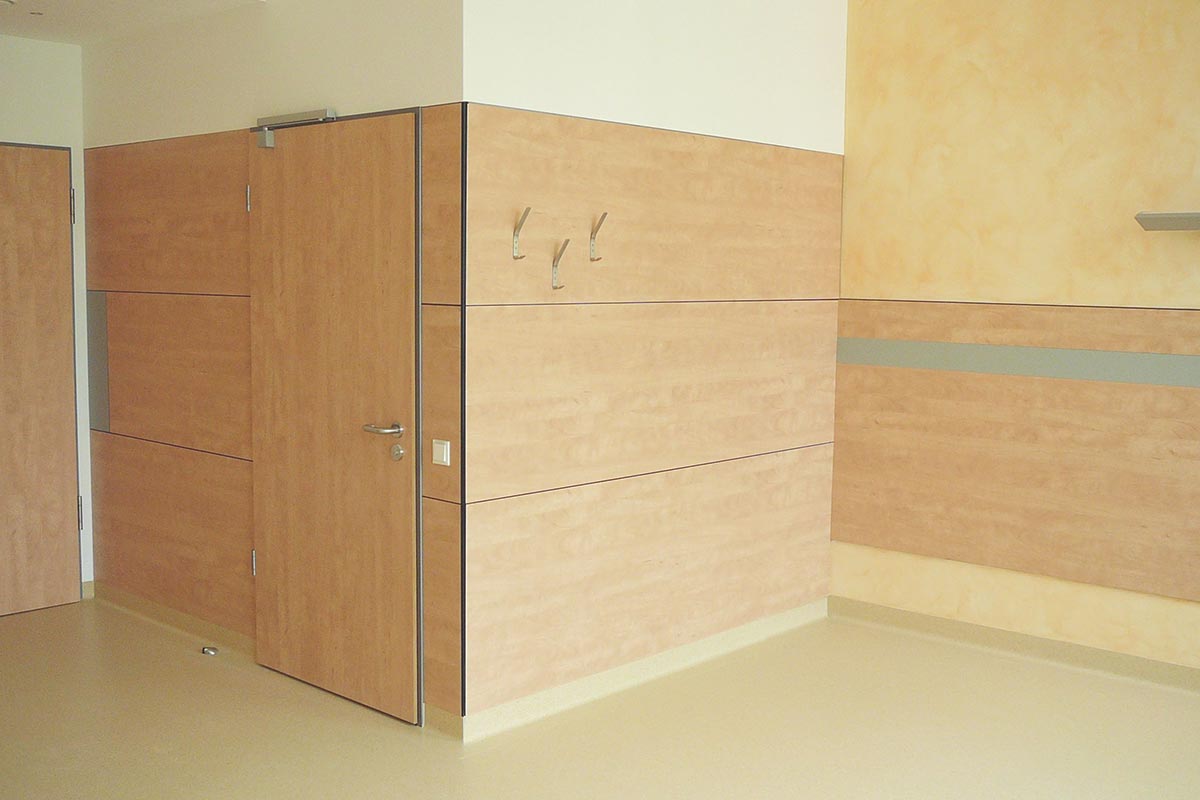

Wall protection

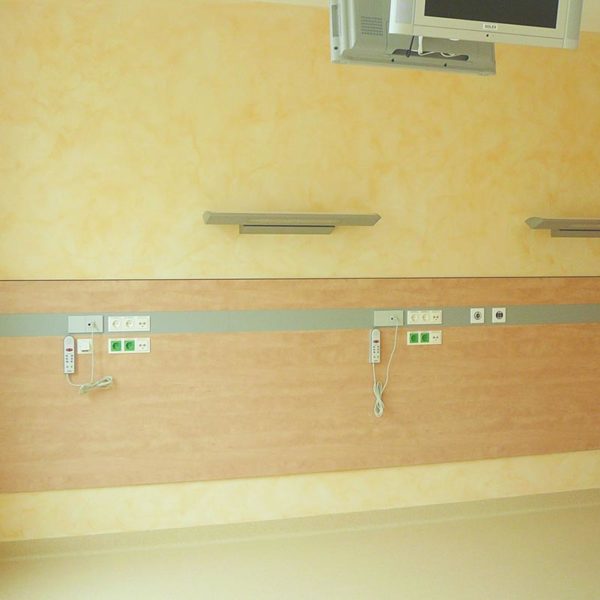

HPL wall protection system with molded upper edge and aluminium clasp fastening

Wall protection
HPL wall protection system with molded upper edge and aluminium clasp fastening

The System

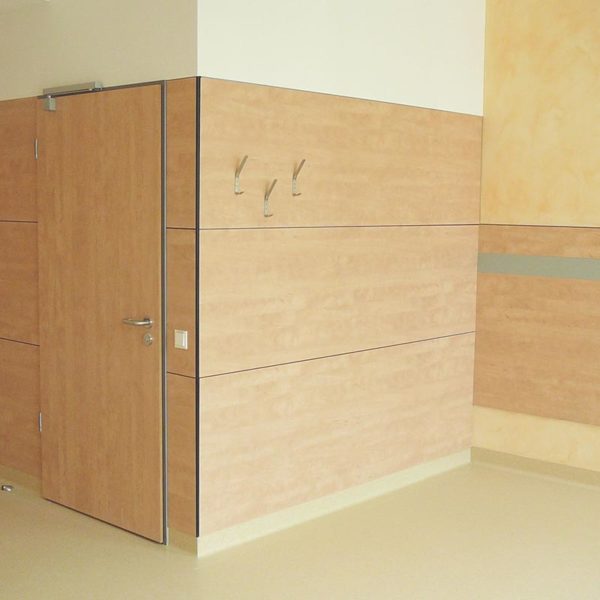

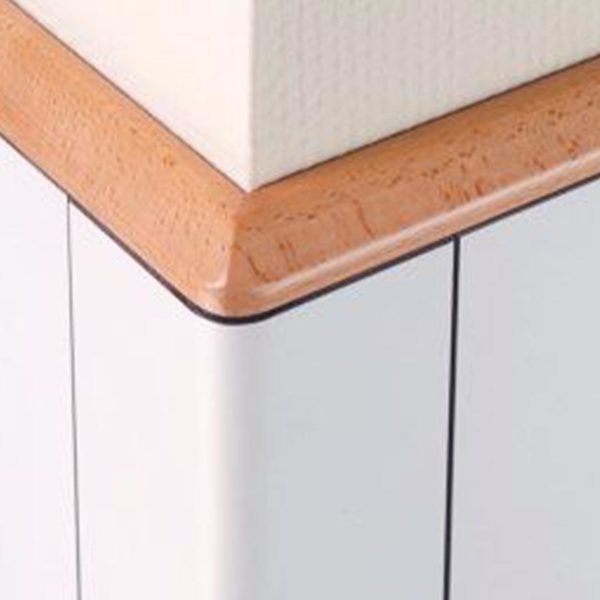

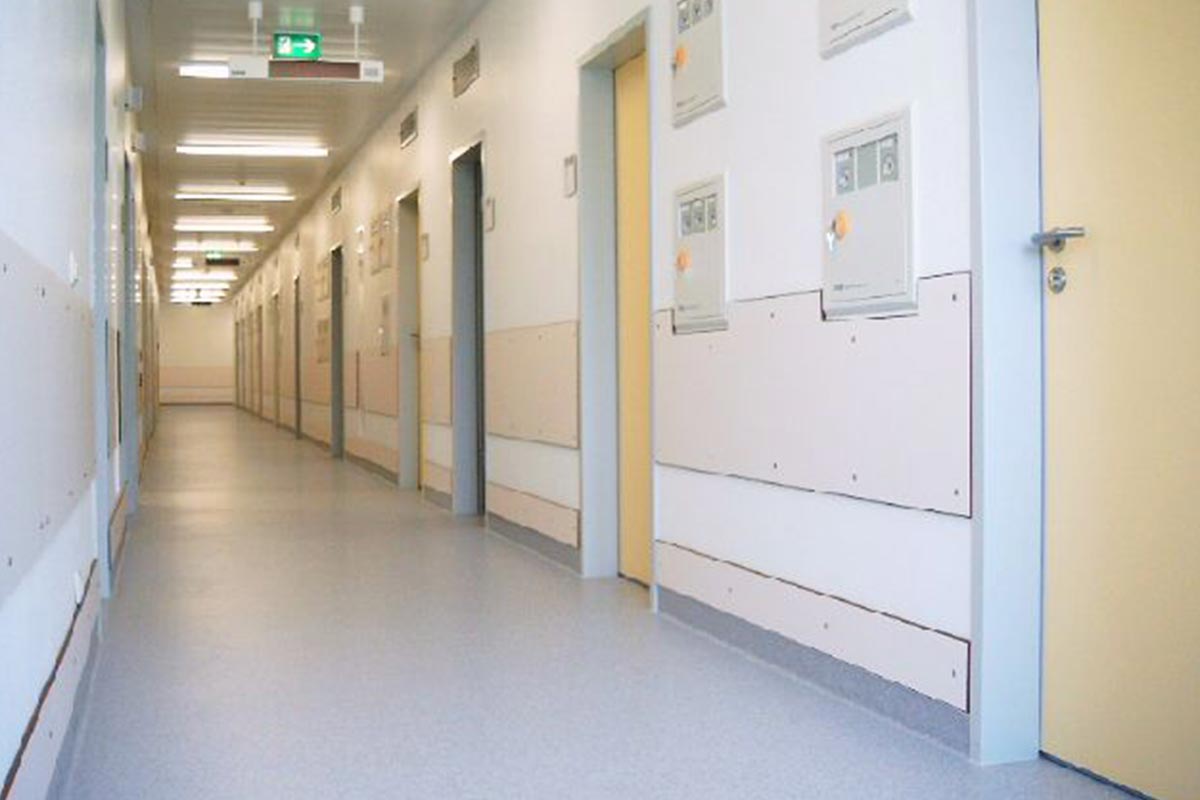

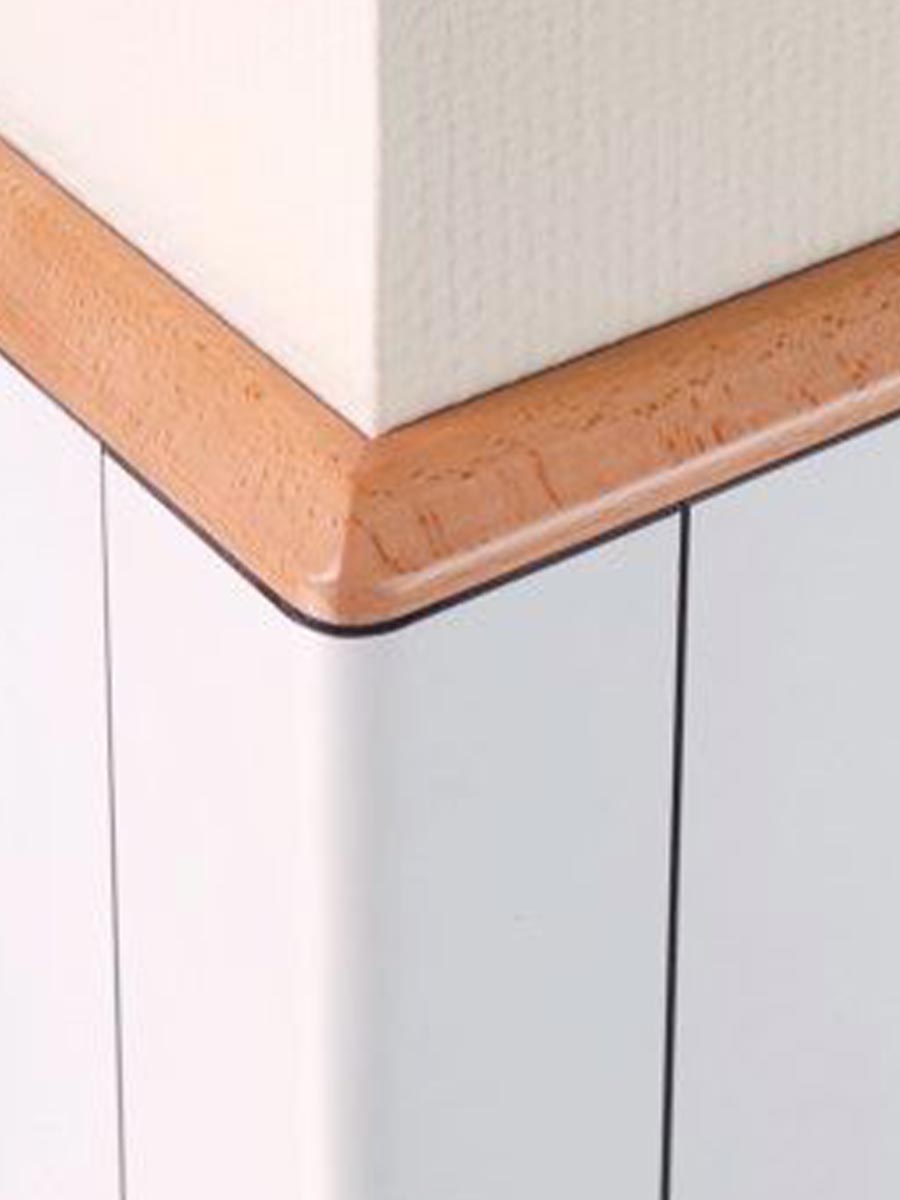

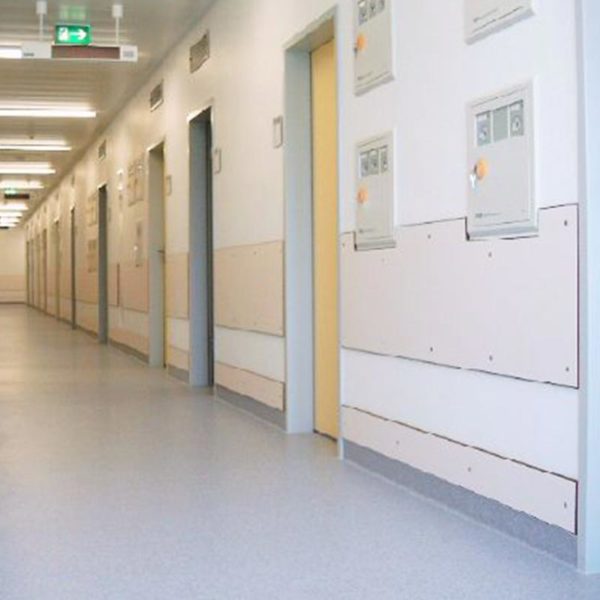

Wall protection system WS-020 made of HPL compact sheet with molded upper edge
-postforming elements rounded in notch technique and poured with 2-K PU-material, the outer radius is 15 mm.
The hidden underconstruction is fastened with aluminium rails on the walls and sheets.
Wall protection over 300 mm high is fastened with two pairs of system rails one above the other.
The mounted wall protection element is sealed all around with silicon sealant of your choice.



Different delivery lengths available. System modifications possible.

wall protection
wall protection
wall protection
wall protection
wall protection
wall protection
wall protection
wall protection

Wall heating

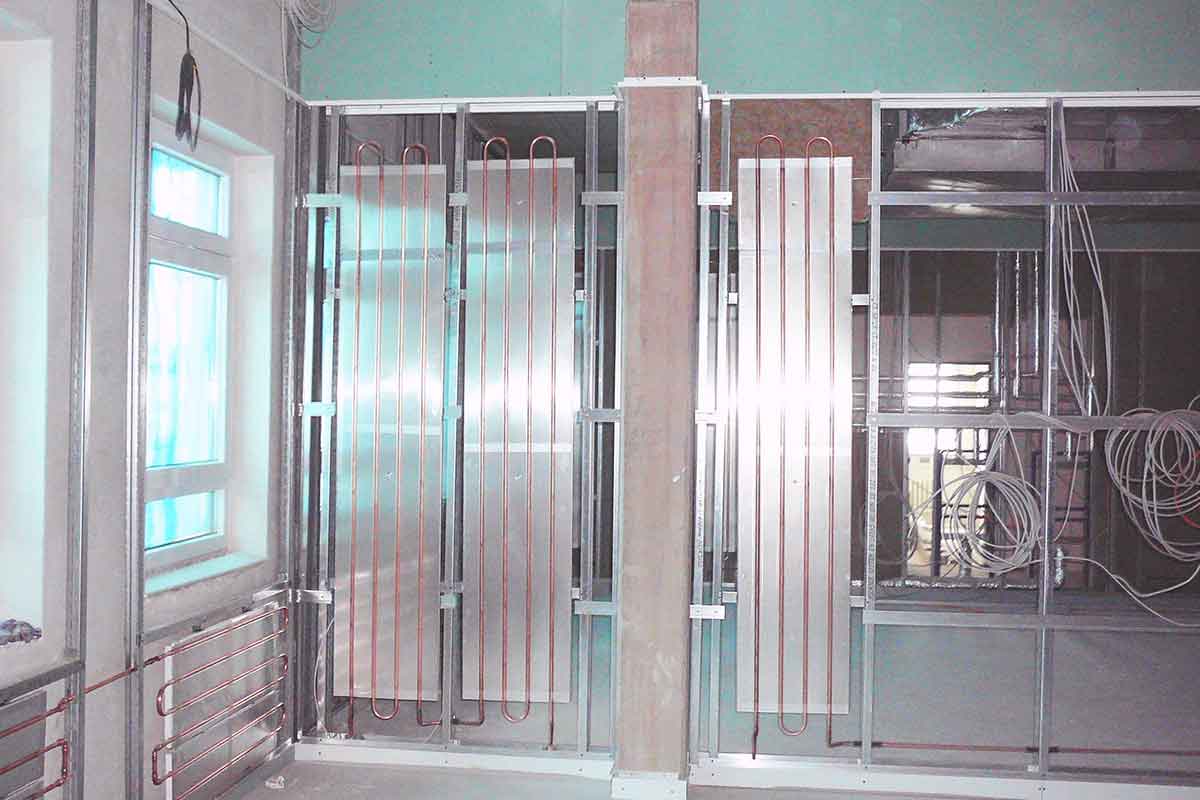

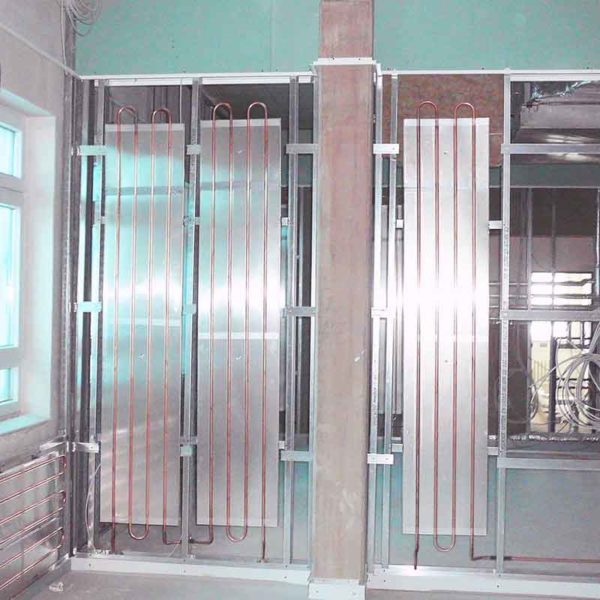

Wall surface heating using copper pipes with heat conduction plates

Wall heating
Wall surface heating using copper pipes with heat conduction plates

The System

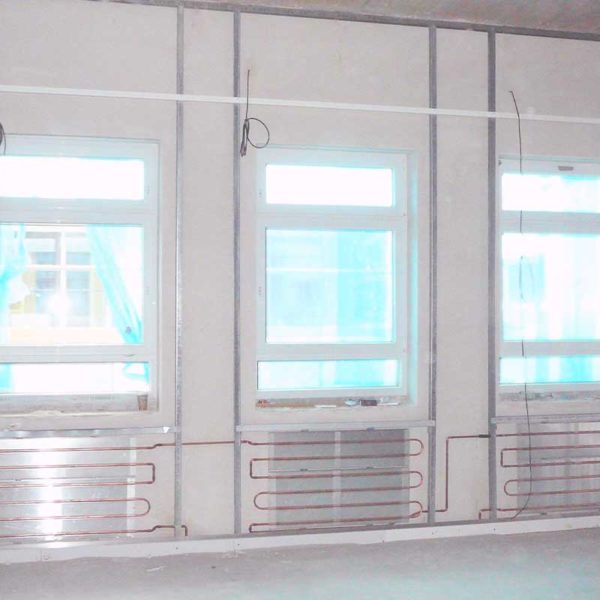

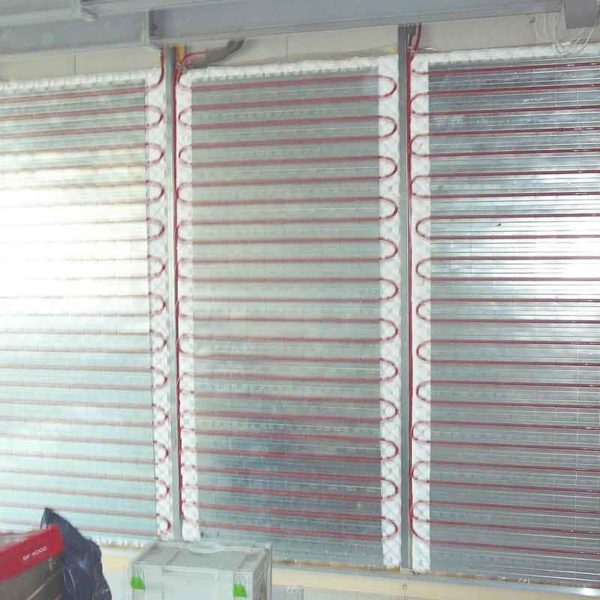

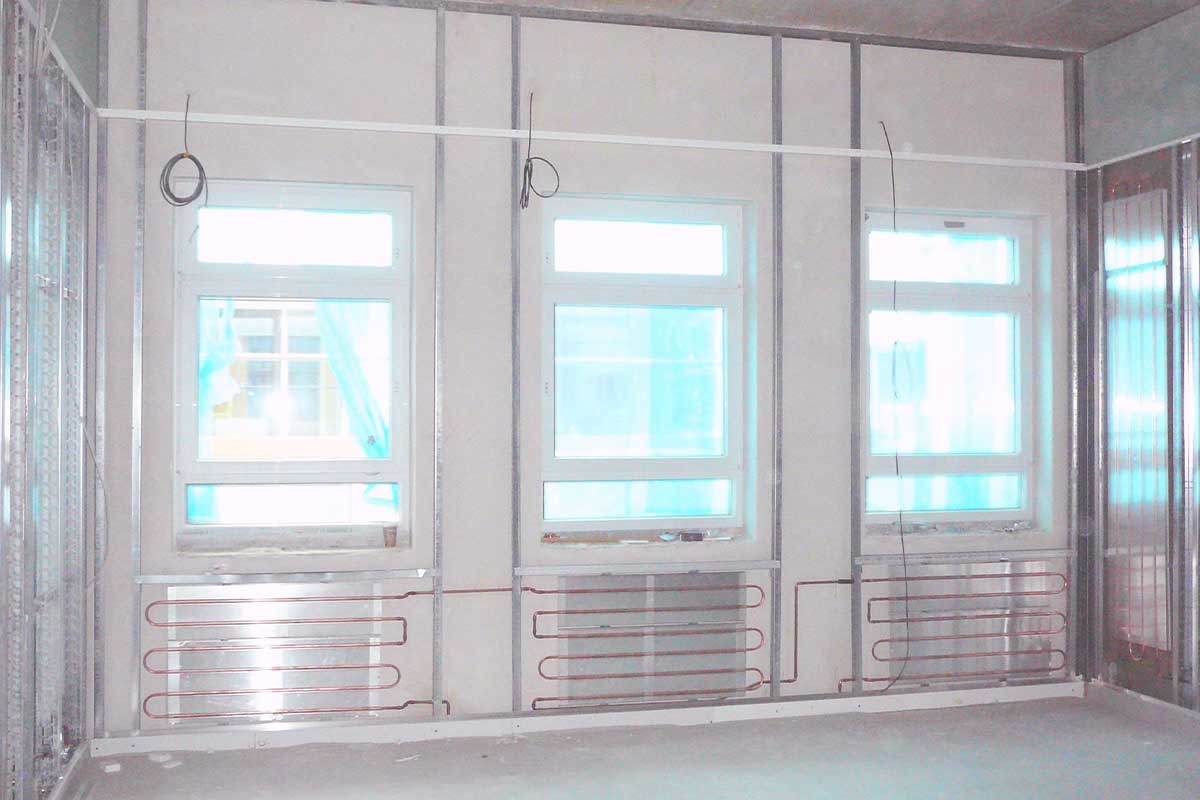

Wall surface heating using 15 mm copper pipes with heat conduction plates is installed into the OR wall system GHK-OPS. The heat is transmitted as surface radiation from the heat conduction plate of the heating element via the HPL wall panel into the OR.



Output:
ca 150 Watt/m2 at 45°C flow temperature



Connection:
Serial connection to the supply and return pipes on site by heating trade.



Check for tightness before mounting of wall panels!

OP equipment
OP equipment
OP equipment

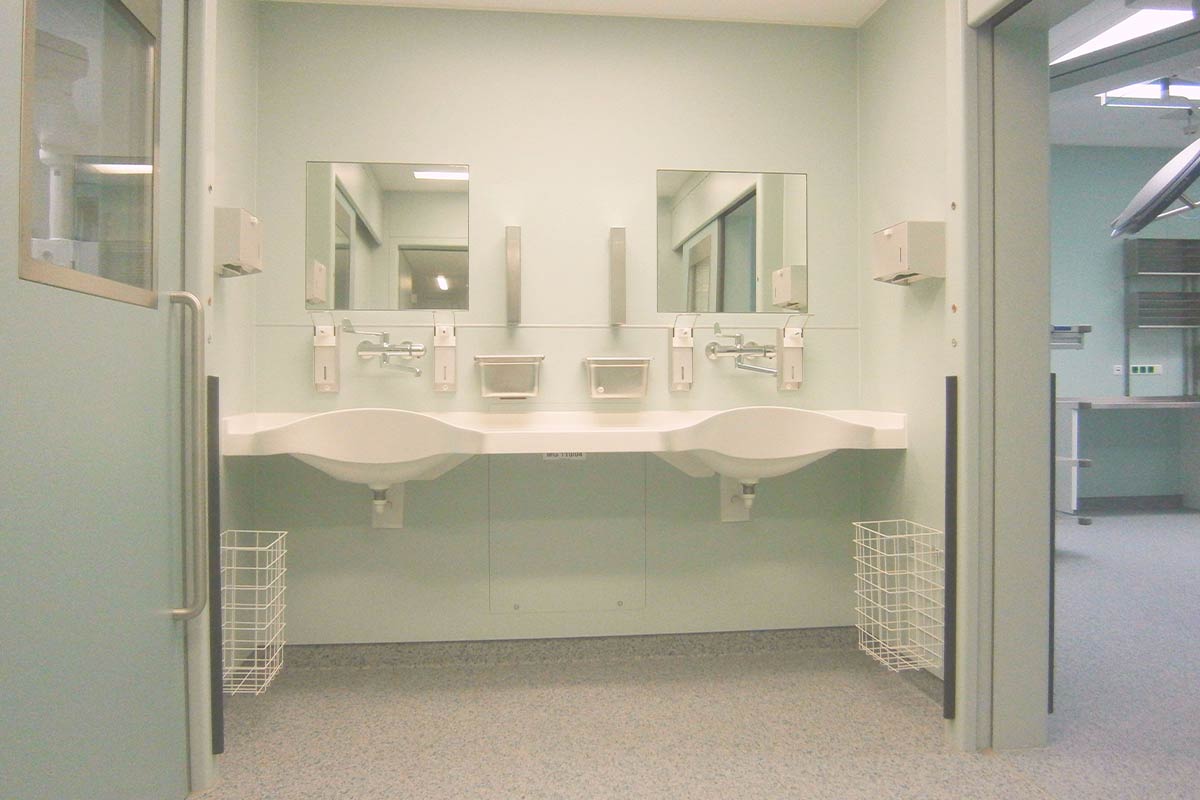

Washing facilities

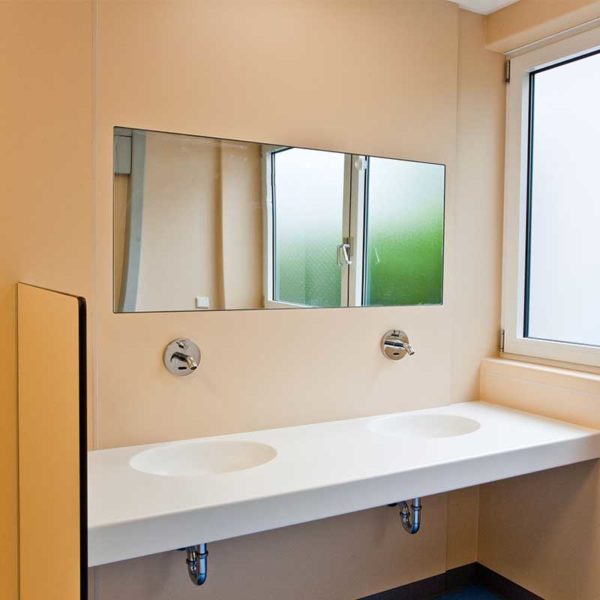

Washing facilities for the OR area realisable to customers‘ demands

Washing facilities
Washing facilities for the OR area realisable to customers‘ demands

The System

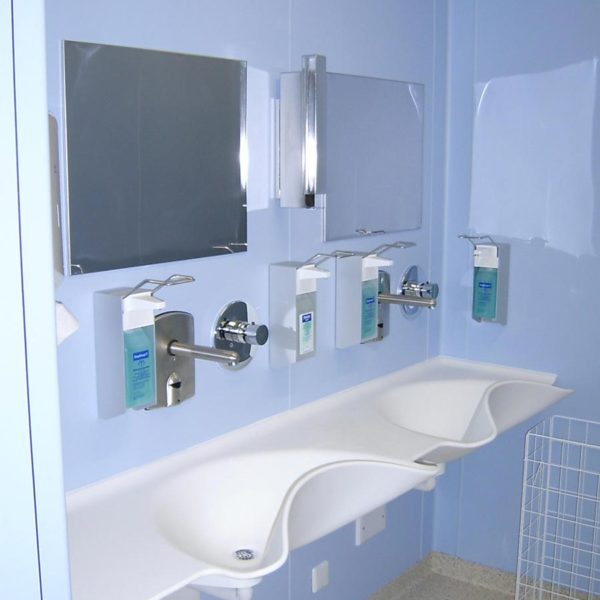

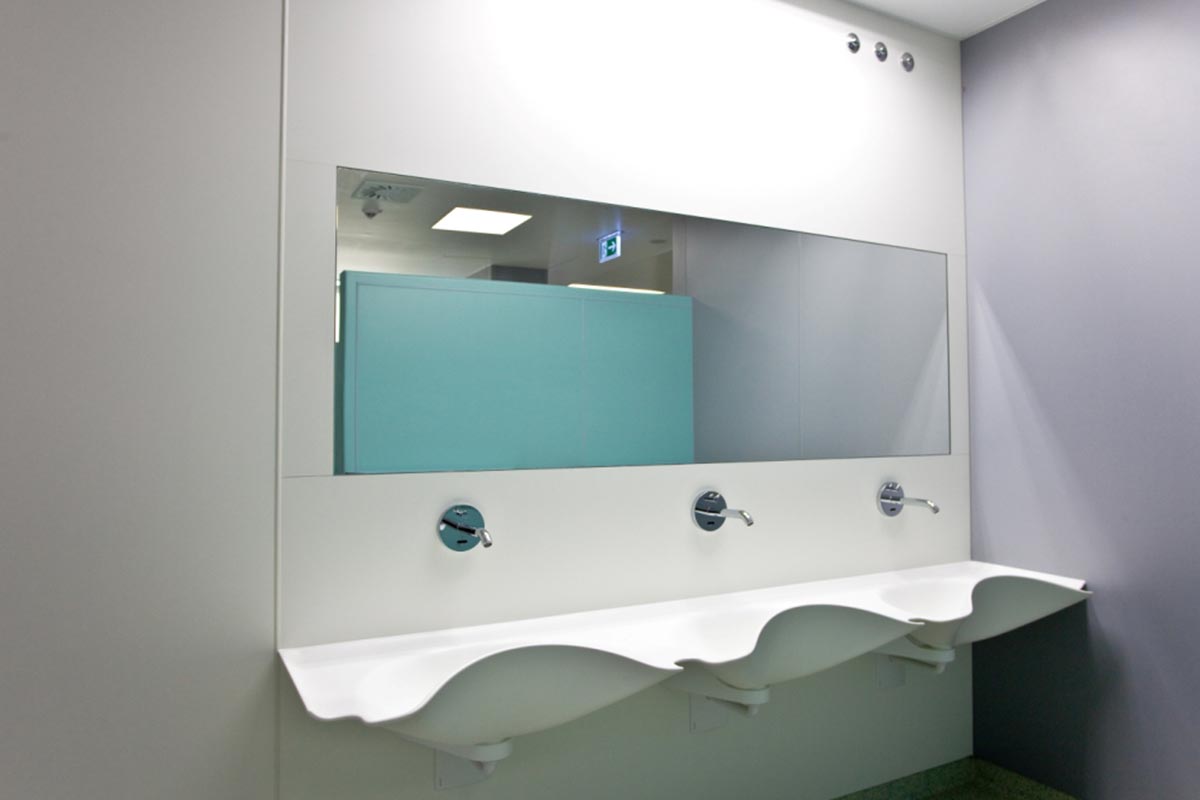

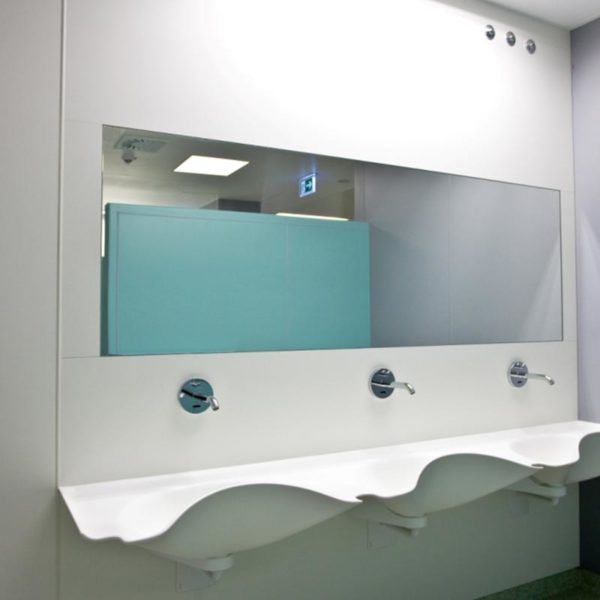

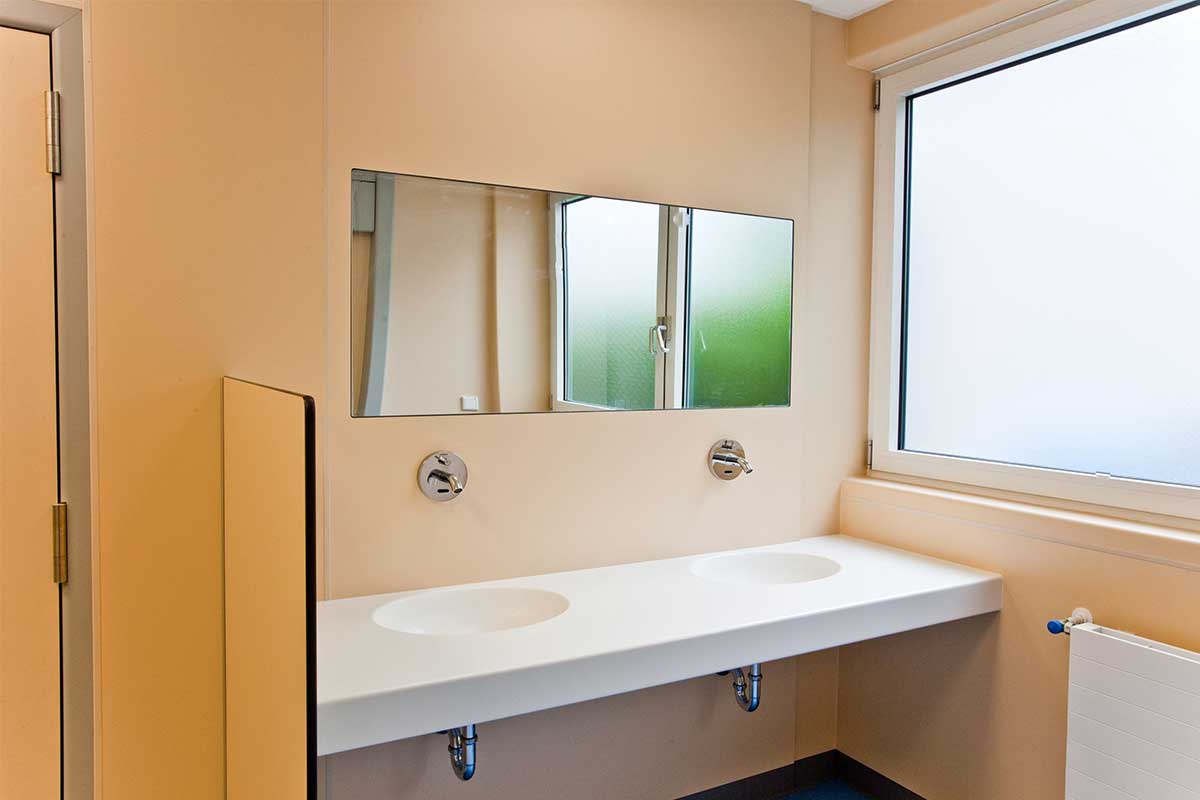

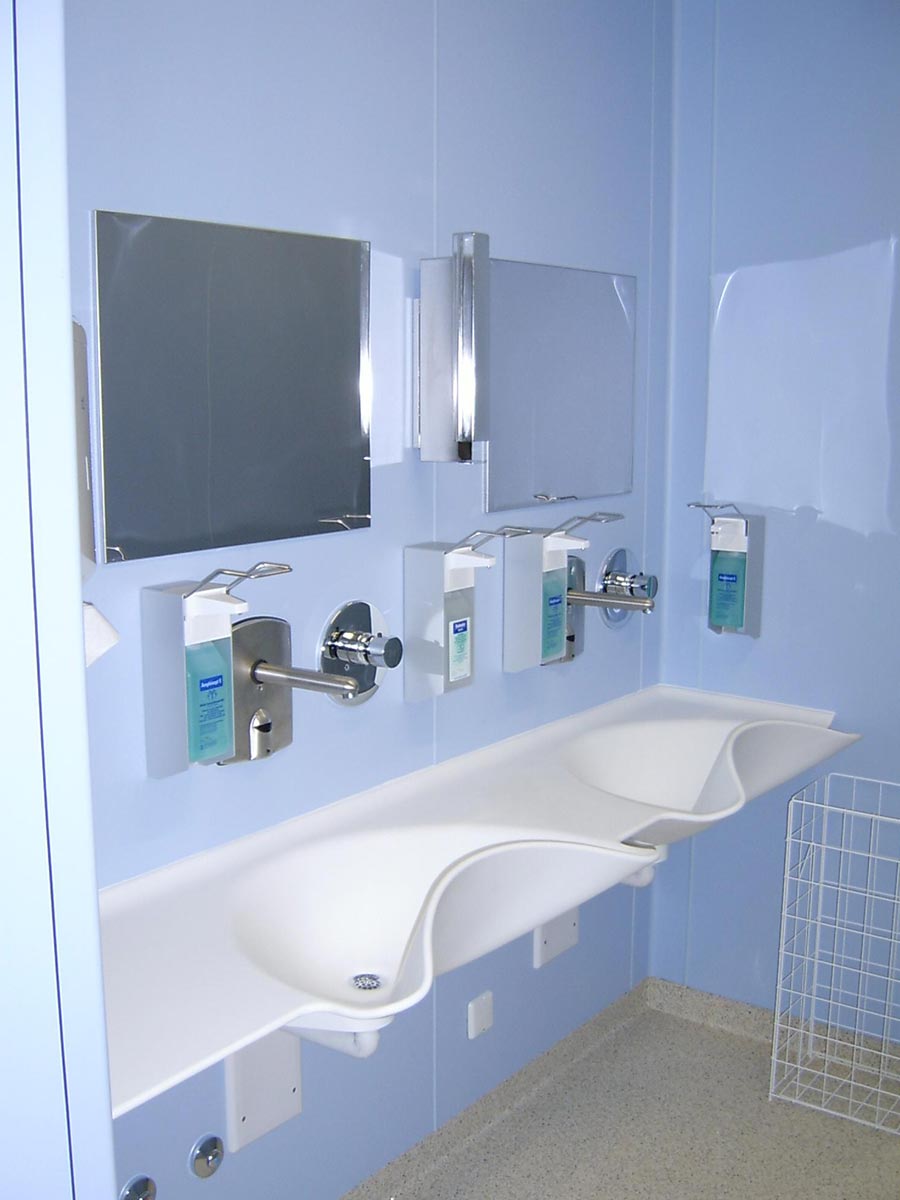

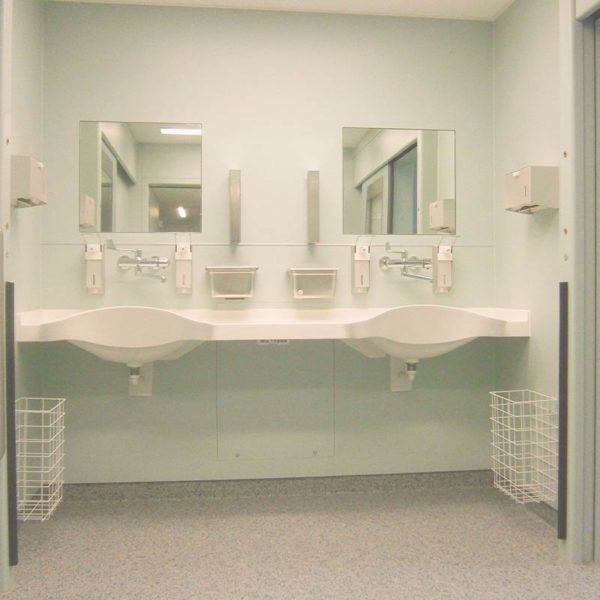

Washing facilities in the OR area of a hospital are needed for disinfection of the OR team’s hands before and after an operation.

They are realisable as washing facilities for 1 to 4 washstands or double facilities made of either a solid surface material, HPL or stainless steel plate according to customer requirements.

The facilities are equipped with long lever fittings (or with optoelectronic control, if desired) and dispensers for liquid soap and disinfectant.

ACCESSORIES

Mirror, brush dispenser, discharges, dispensers for soap and disinfectants and so on.

OP equipment
OP equipment
OP equipment
OP equipment

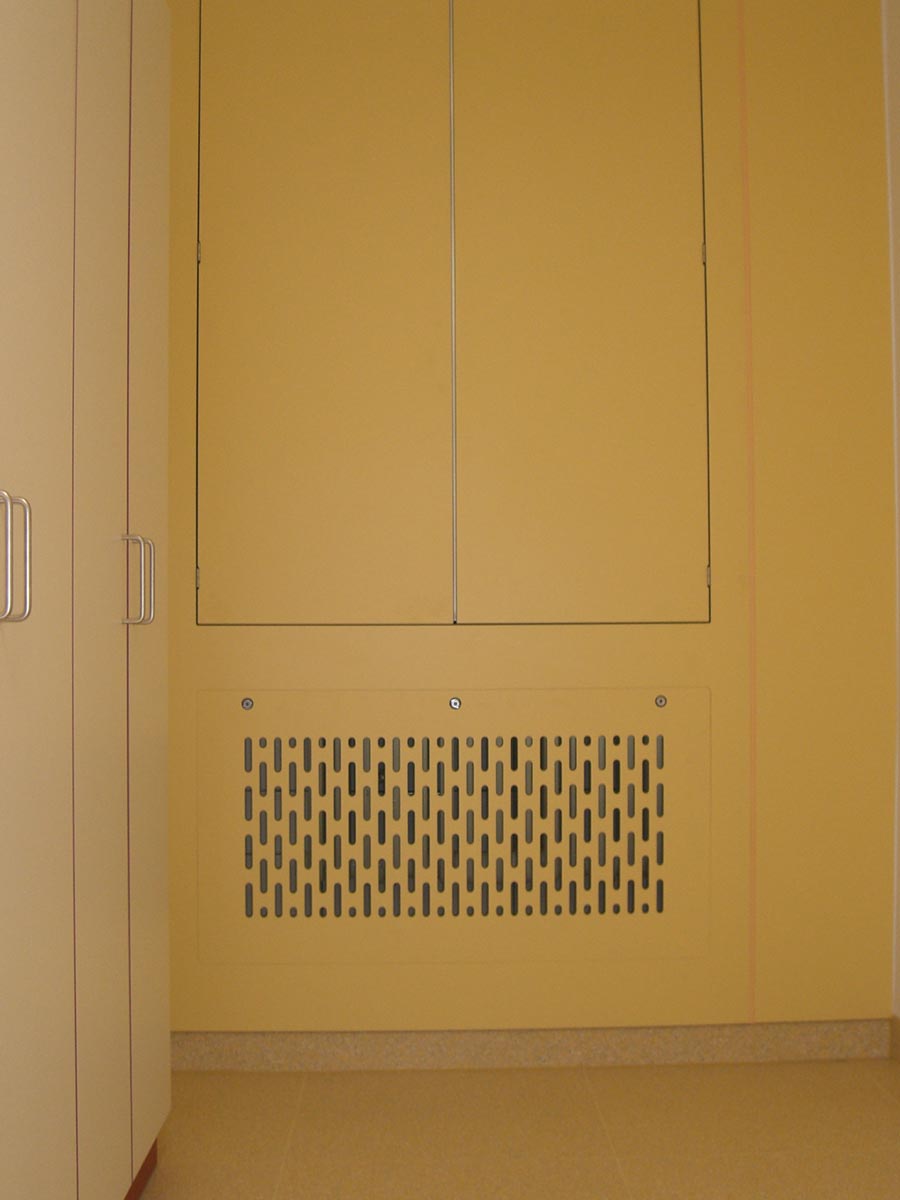

Air duct, wall integrated

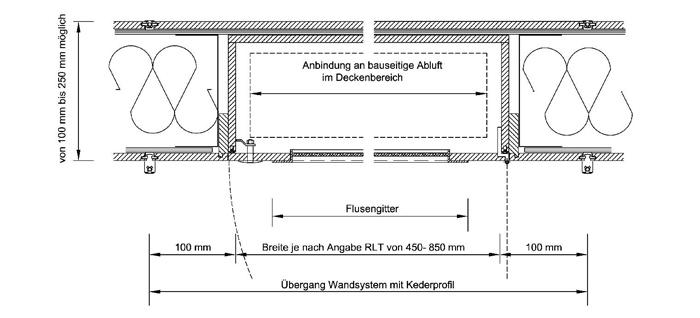

Air duct canal or cabinet, integrated into the wall

Air duct, wall integrated
Air duct canal or cabinet, integrated into the wall

The System

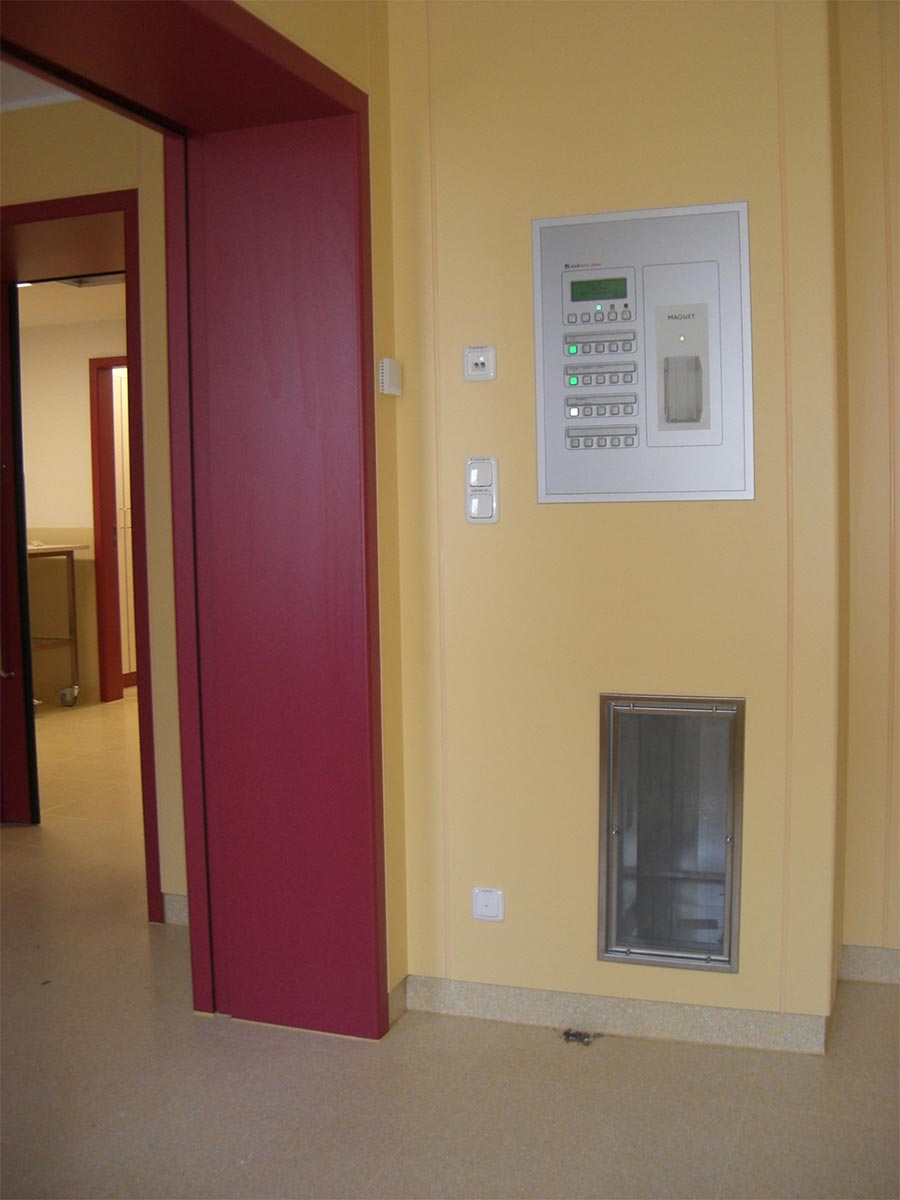

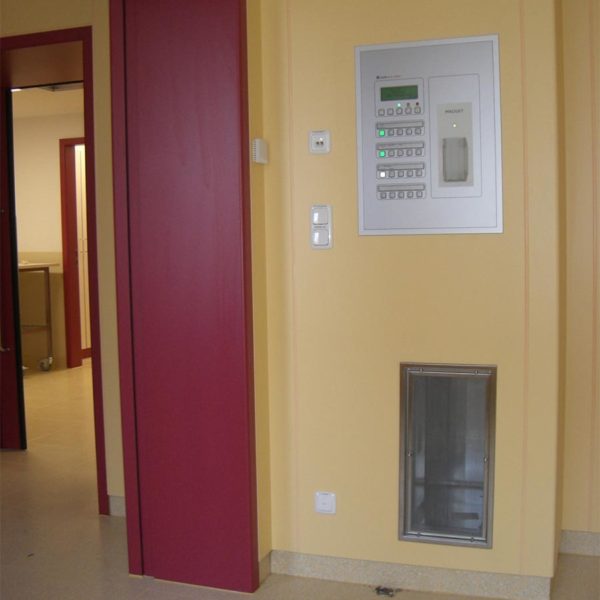

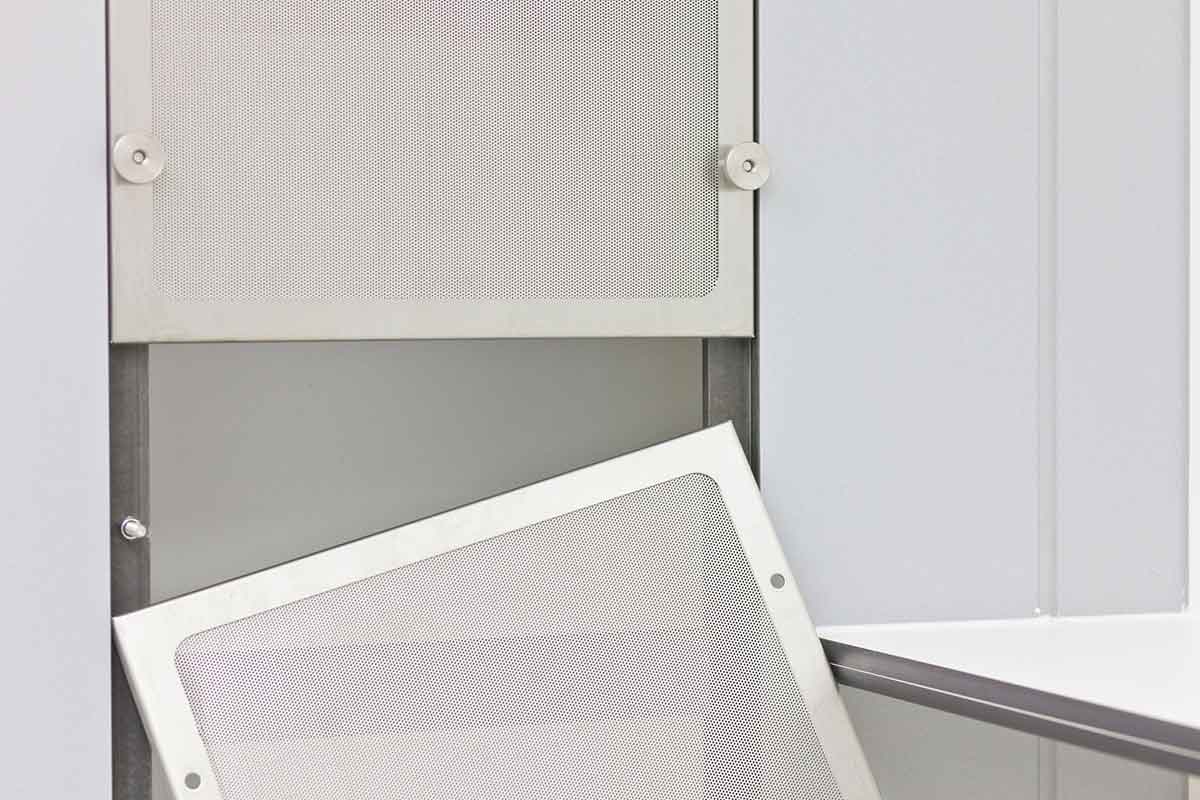

This element for outgoing air fits flush into the GHK wall systems expanding the advantages of HPL material to these construction parts. Simple cleaning in the canal is guaranteed by opening the revolving door. This door is equipped with two fluff filters made of VA material. Size according to ambient air requirements.

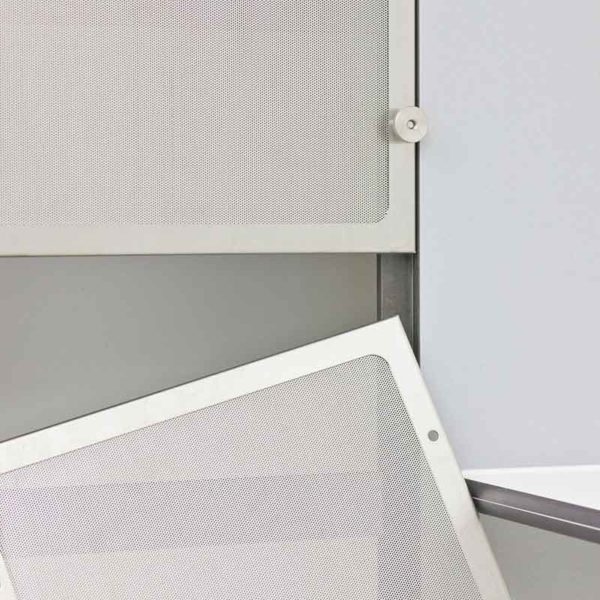

Removable stainless steel fluff screens in accordance with the volume flow (for example LMC Flusept) are mounted in the transparent front panel; optionally an inspection door for the complete cleaning and disinfection of the canal can be added.
