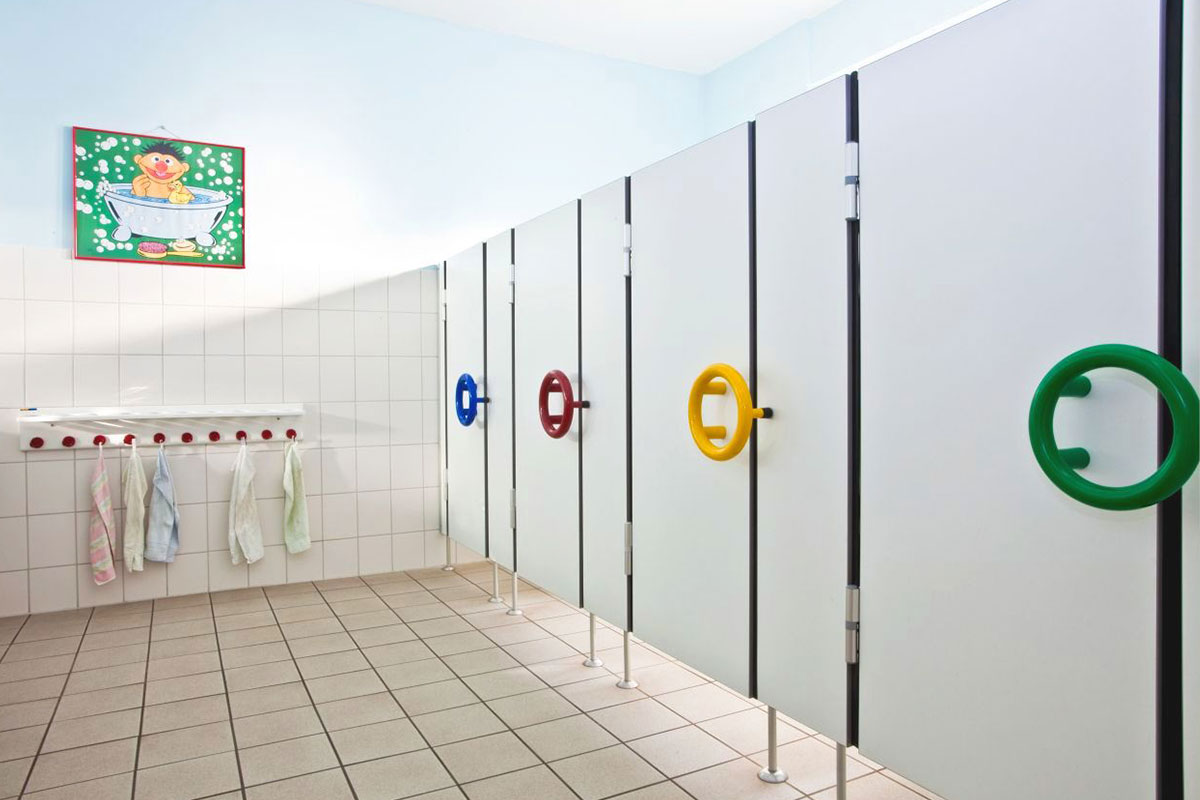

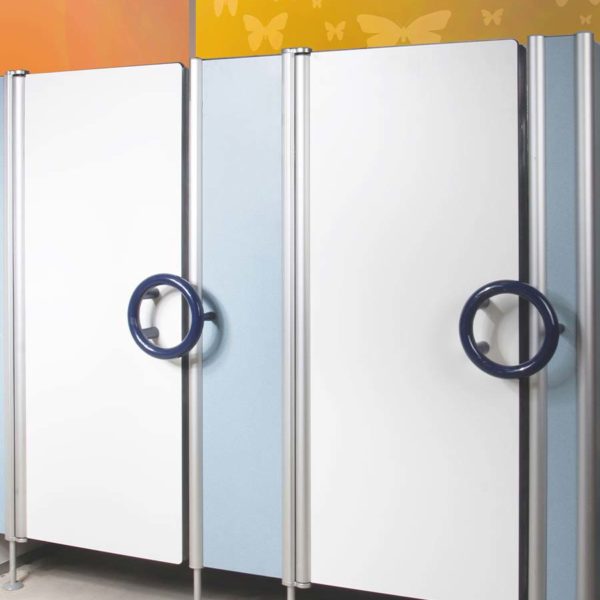

The sanitary cubicles for children were designed especially for the little ones, for institutions such as preschools and child care centres. In comparison to our sanitary cubicles for adults they are made for the size and the requirements of playing and romping children. The doors close automatically by special hinges and a safe child-protection profile protects against pinching fingers. Moreover the doors have big plastic handles that are as easy as child’s play to use. All parts of the sanitary cubicles for children are rounded and accident-proof. The 13 mm HPL compact sheets stand up to all wild rompings. Thus accidents can be prevented. Their size and form make our sanitary cabins suitable for children not only in a practical sense. Children also like them very much. Once their new sanitary cabins are installed, the little ones are happy to have their own small toilets. Detailed model descriptions and pictures can be found in our technical data bulletins.

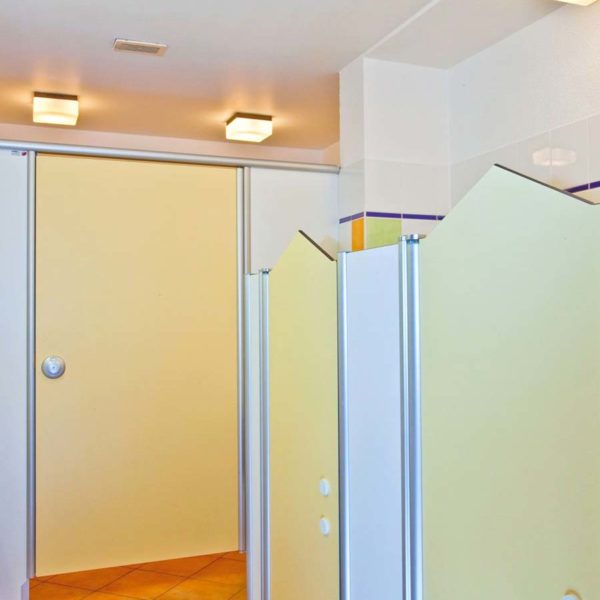

Das System
Construction height:
1400 mm, 150 mm ground clearance included.
Model:
Made from 13 mm HPL compact sheets, according to DIN EN 438, melamin surface in shade according to colour card, exposed edges and corners with 10 mm radius rounded to be accident-proof, colour black.
Supported vertically at the sides by aluminum profiles.
Doors:

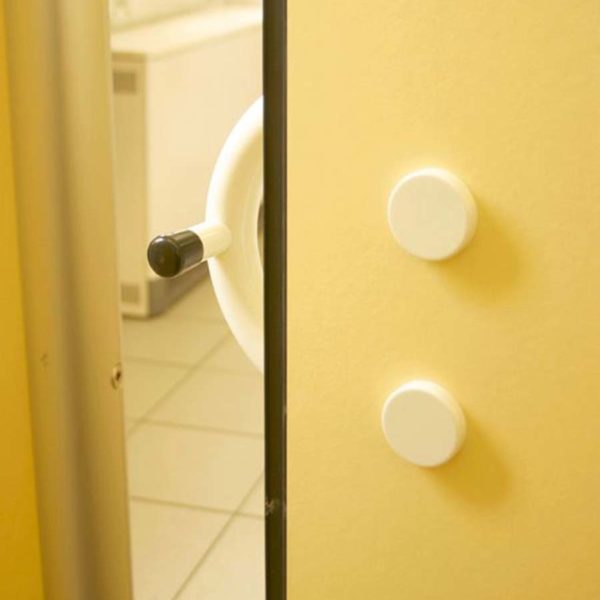

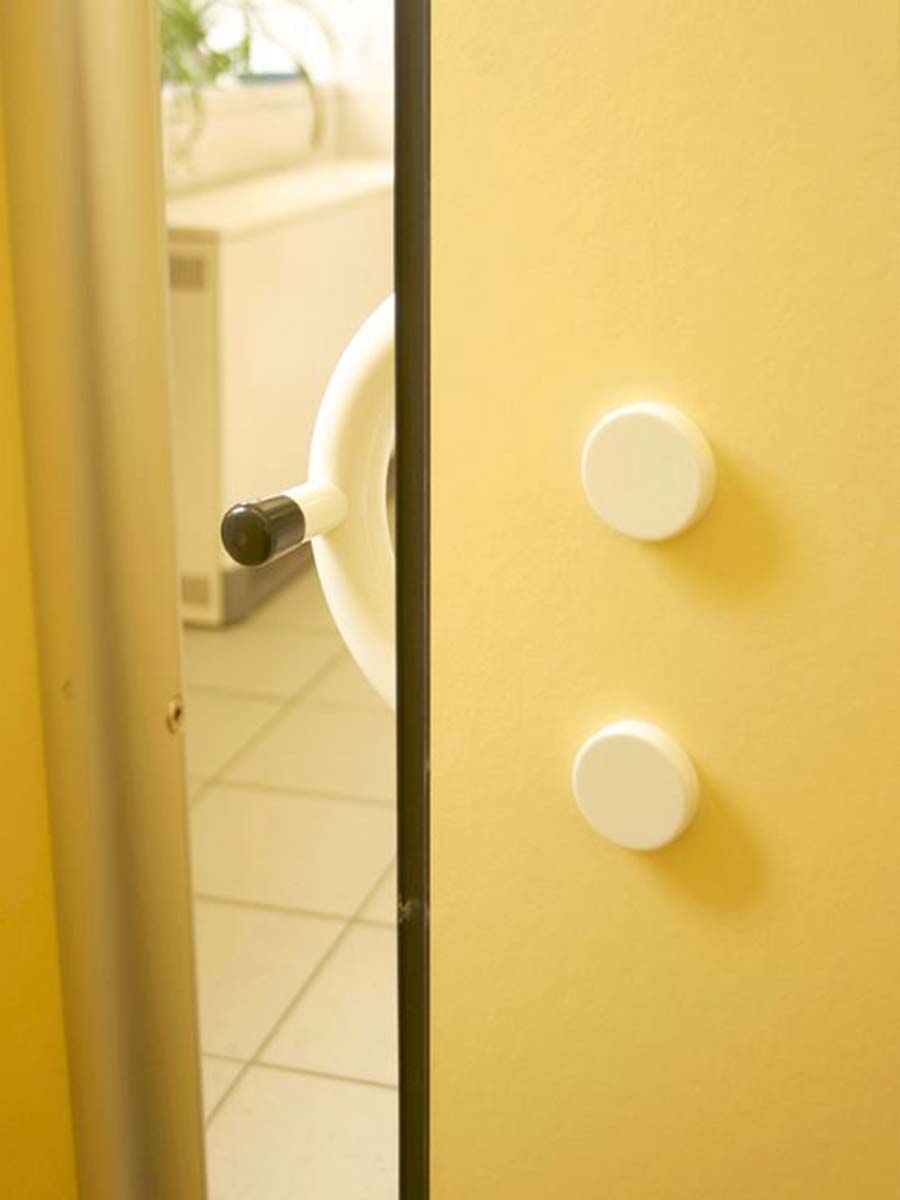

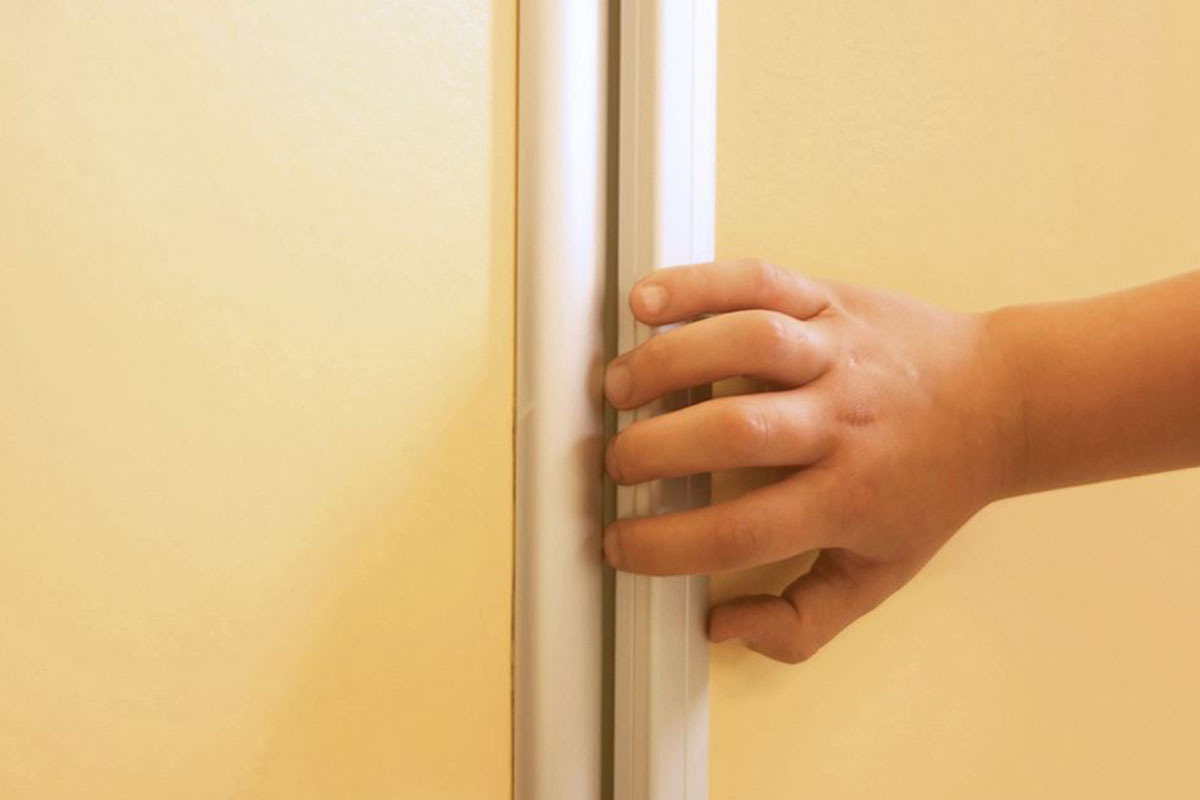

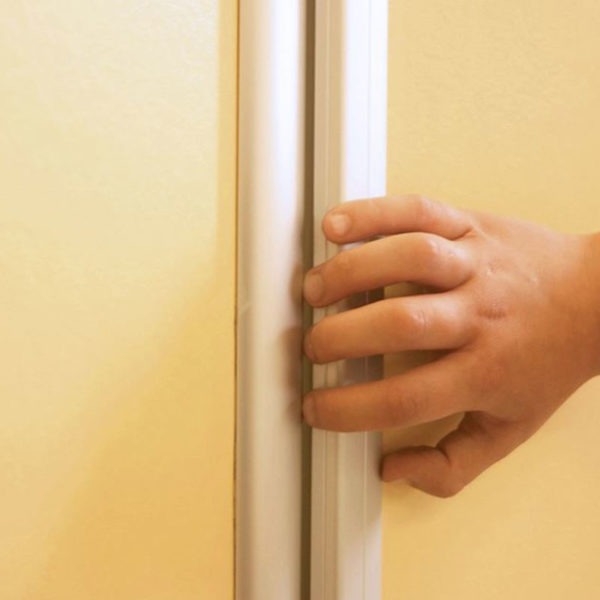

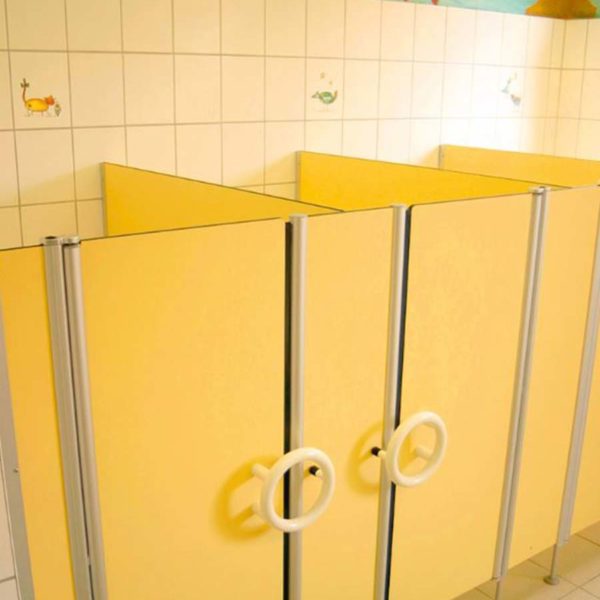

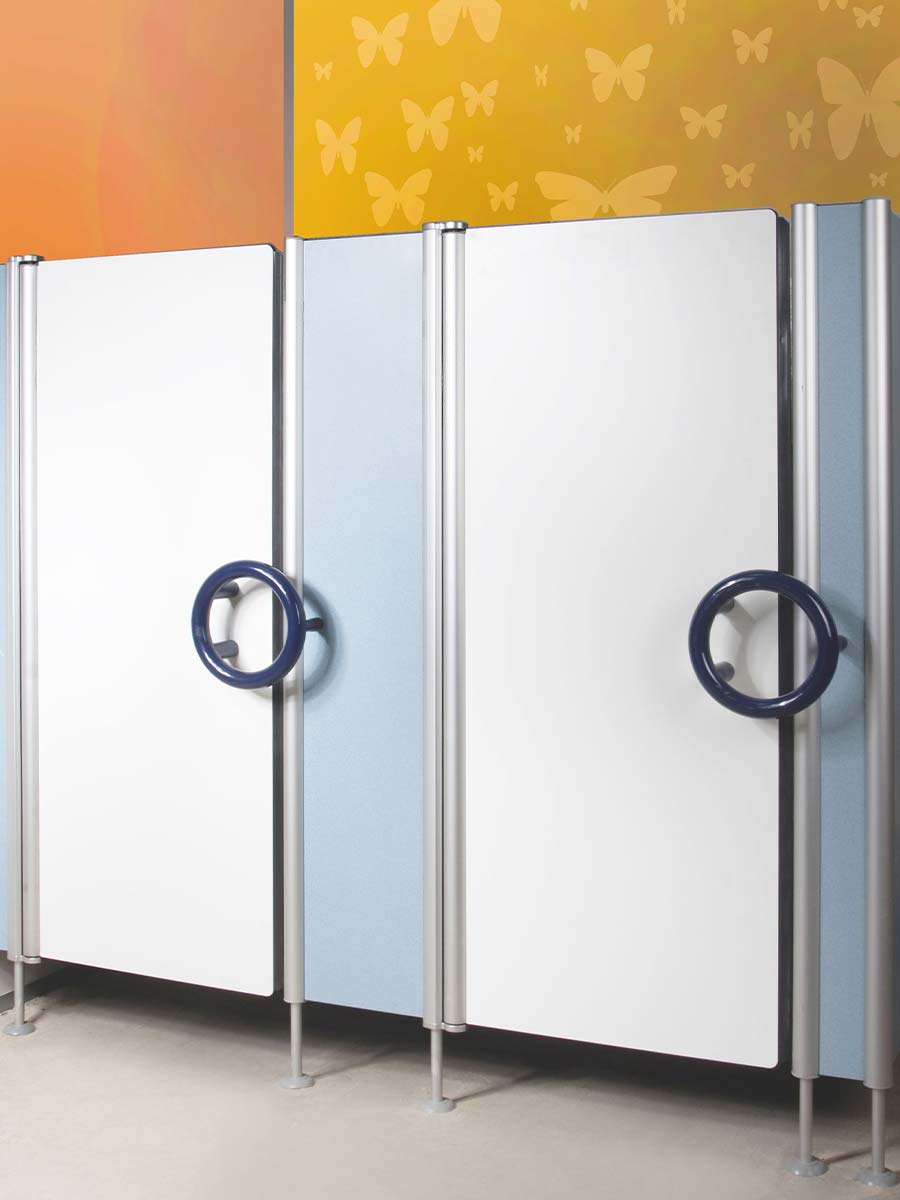

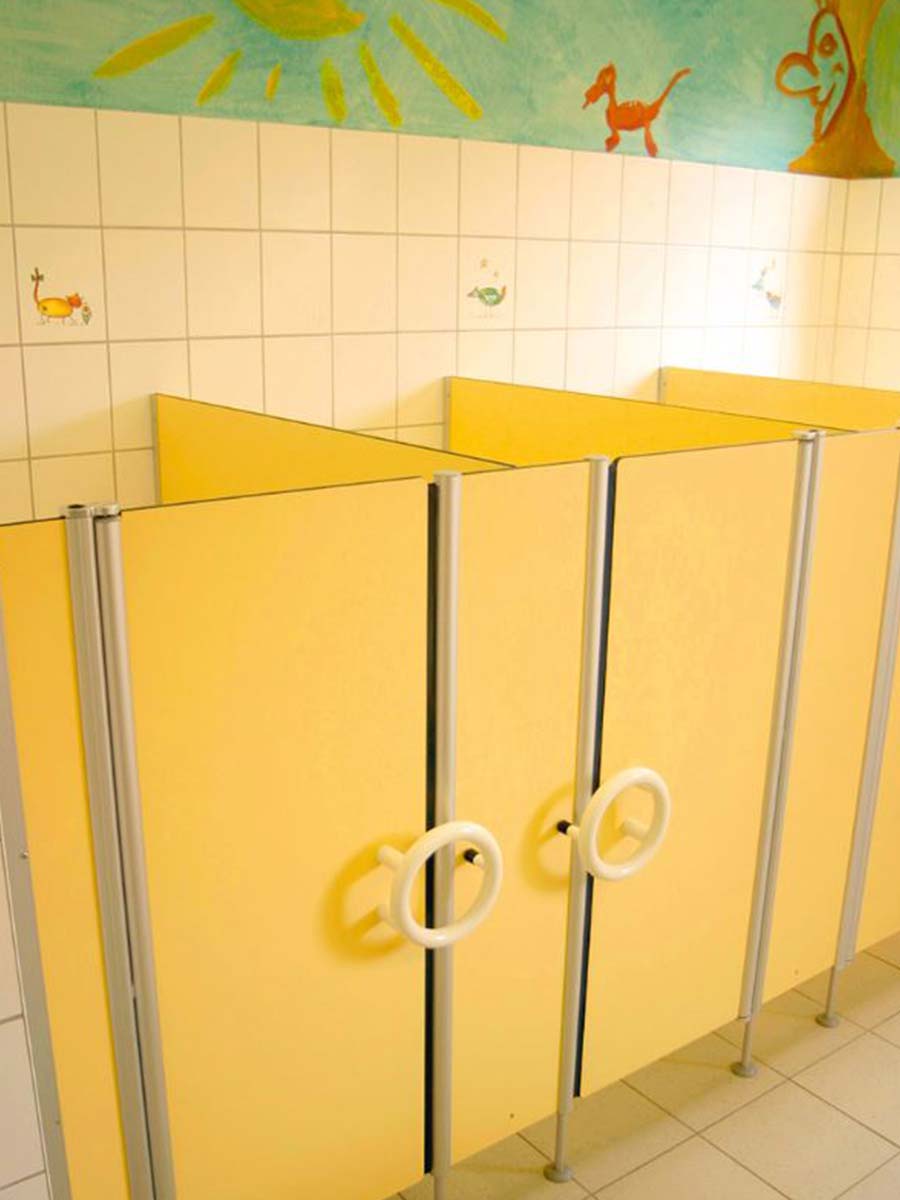

550 mm nominal width, 502 mm clearance, special fitting for automatic closing. Finger protection profile at fitting side, no external fittings. Circular push handle 200 mm f made of 30 mm nylon round material as door check at closing side. Pinching of fingers is made impossible by a black rubber lip at the closing and the finger protection profile at the fitting side.
Walls:
one-piece up to 1600 mm width, more than 1600 mm two pieces with joining profile and leg at about 1260 mm.
Fittings:

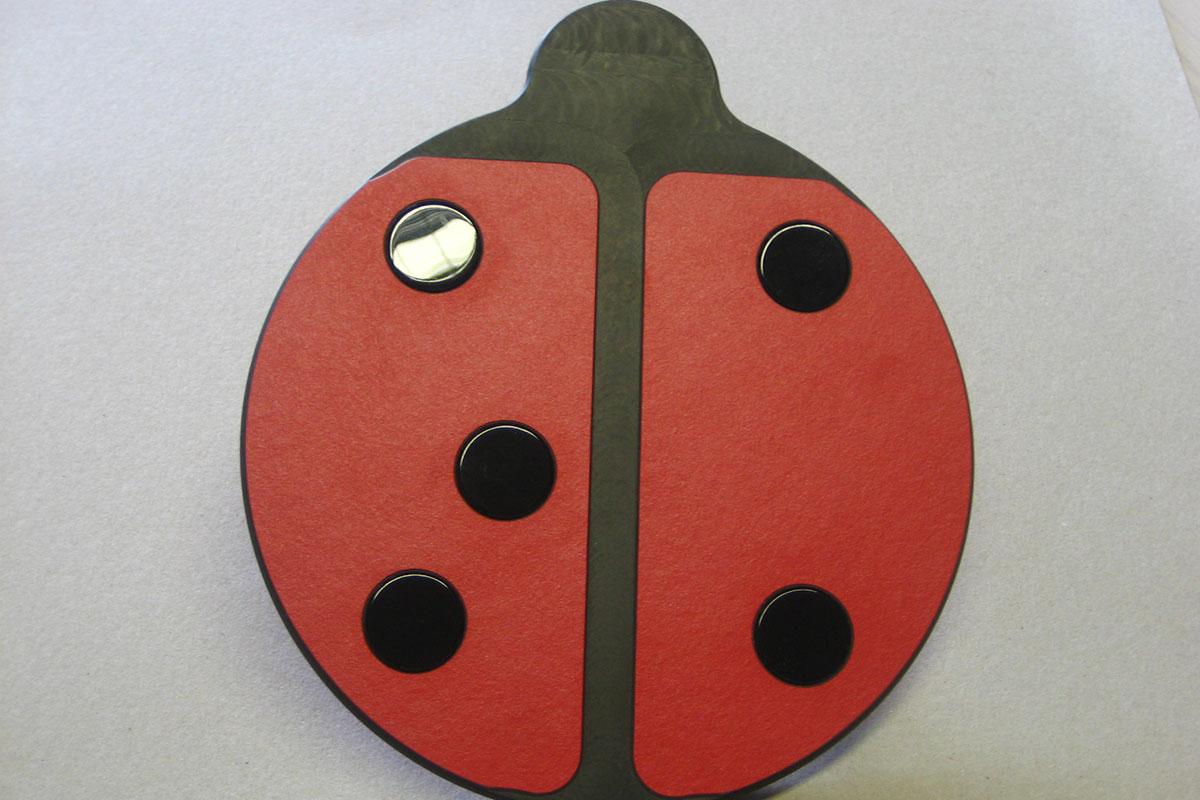

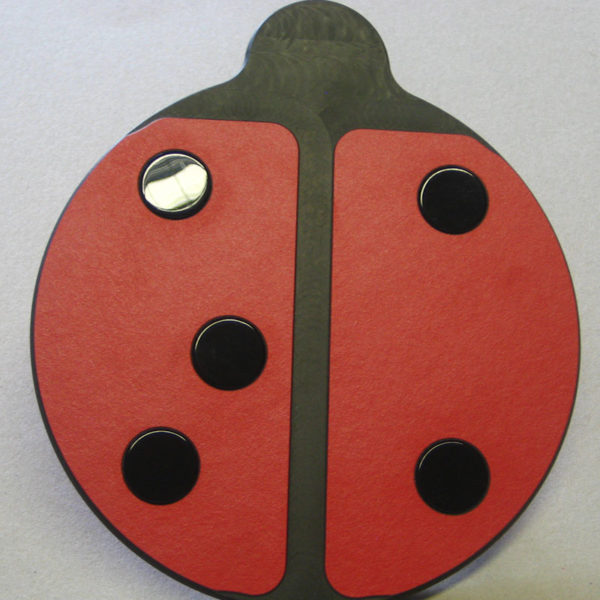

Preschool push handle made of plastic or HPL – motifs (at additional cost).
Ground connection:
Adjustable screw-on legs made of 18 mm aluminium tube with cover rosette. If desired and at additional cost: legs made of brushed stainless steel 18 mm with stainless steel cover rosette.
Wall connection:
Aluminum profile, also functioning for evening out construction tolerances. At additional cost: slanting wall connection.
Upper connection:
Walls and doors end in a plastic profile matching colour and width of the elements at the top as well as at the vertically freestanding sides. All corners are rounded.
Colours:
Walls and doors according to colour card, rails anodized or powder-coated in RAL-colours, legs anodized or made of stainless steel and coloured push handles.
Subject to technical changes.

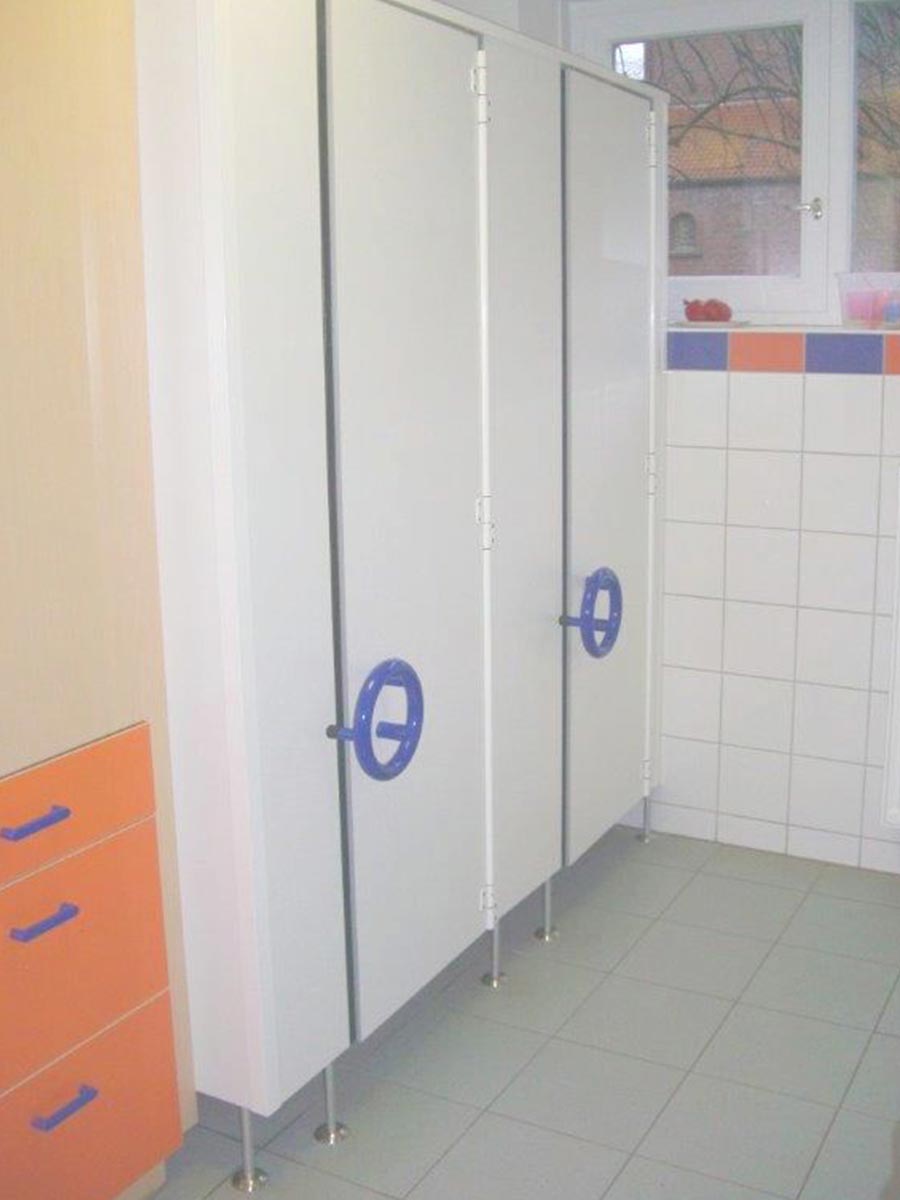

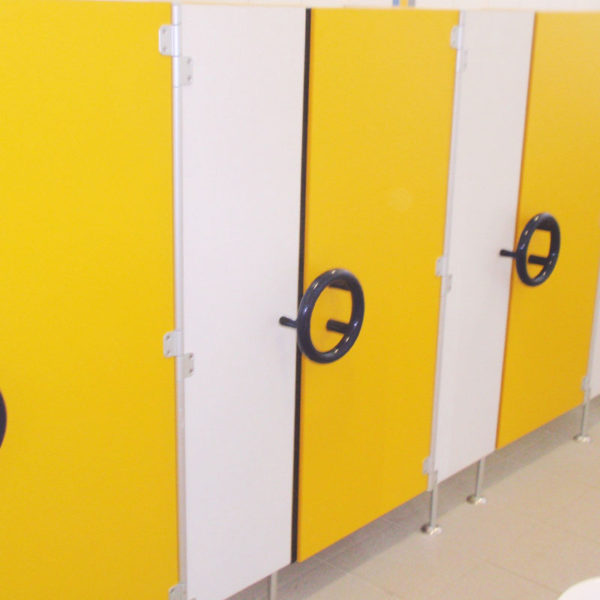

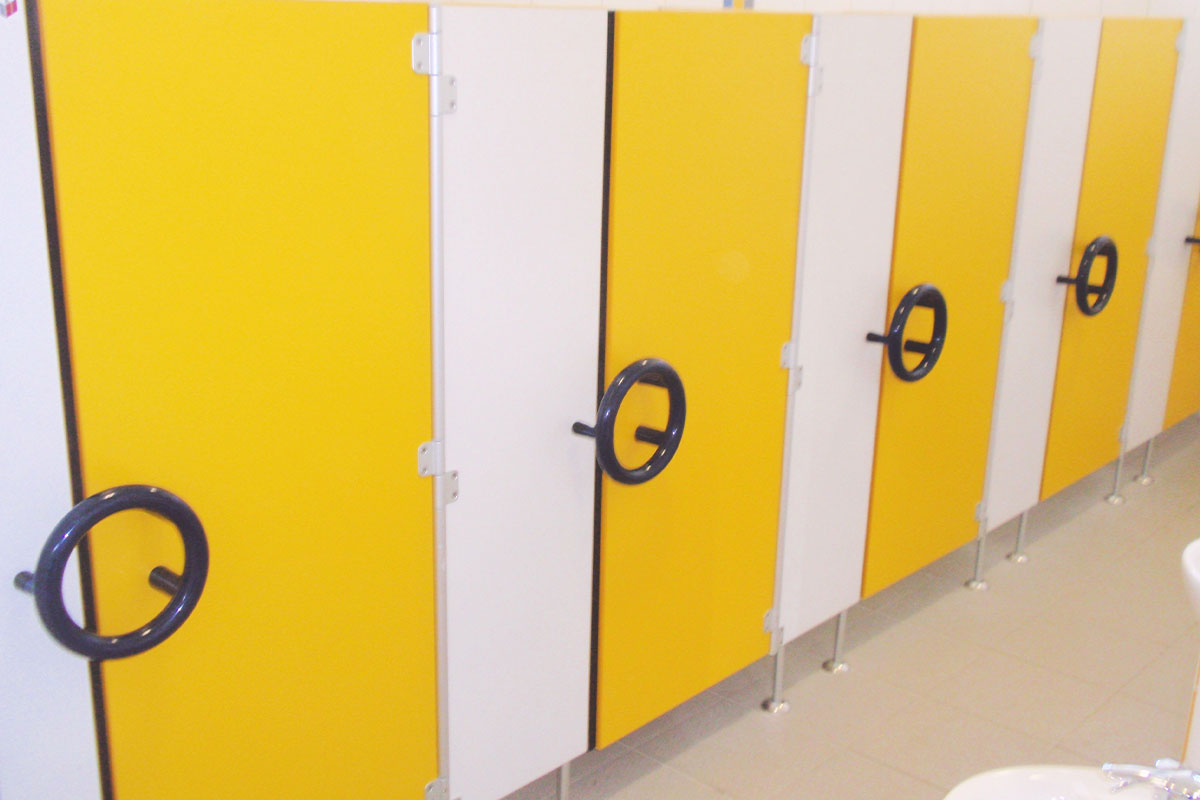

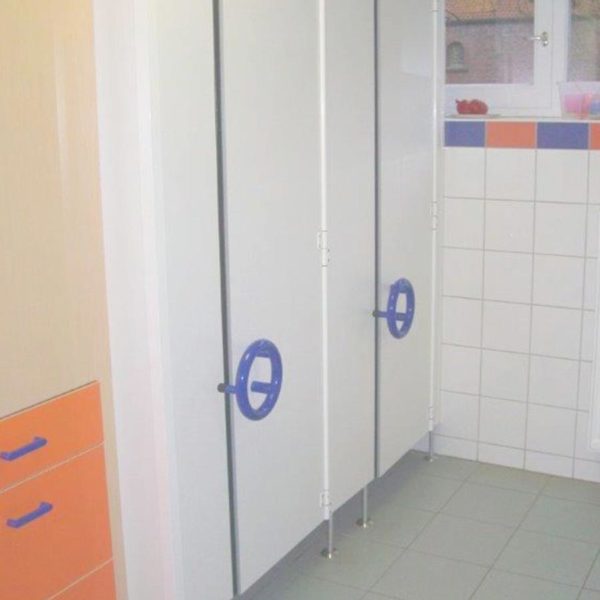

The System
Construction height:
1400 mm, 150 mm ground clearance included.
Model:
Made from 30 mm chipboard sheet with melamin surface. Grey ABS edge 2,0 mm gkued to exposed edges. Melamin surface in shade according to colour card. Supported vertically at the sides by aluminum profiles.
Doors:
550 mm nominal width, 502 mm clearance, special fitting for automatic closing. Grey ABS edge around the doors. Accident-proof finger protection profile at fitting side, circular push handle 200 mm made of 30 mm nylon round material as door check at closing side. Pinching of fingers is made impossible by a black rubber lip at the closing and the finger protection profile at the fitting side.
Fitting:
Preschool push handle made of plastic, swivel lock FB as additional lock possible.
Ground connection:
Adjustable screw-on legs made of 18 mm aluminium tube with cover rosette. If desired and at additional cost legs made of brushed stainless steel 18 mm with stainless steel cover rosette.
Wall connection:
Aluminum profile, also functioning for evening out construction tolerances. At additional cost: slanting wall connection.
Upper connection:
Walls and doors end in a plastic profile matching colour and width of the elements at the top as well as at the vertically freestanding sides. All corners are rounded.
Colours:
Walls and doors according to colour card, rails anodized or powder-coated in RAL-colours, legs anodized or made of stainless steel and coloured push handles.
Subject to technical changes.
