Lockers: safe – functional and durable

In developing our lockers we attached greatest importance to highest quality, functionality as well as flexibility. The modular construction of our lockers can be adapted perfectly to all kinds of rooms. Different equipment details serve the needs of your company at the highest level.



Our lockers consist of waterproof and very durable HPL compact sheets which stand up to permanent heavy-duty service and are easily cleanable at the same time.



Very important: Our lockers can be combined with different door lock systems. While one company prefers slotting a coin – a deposit -, another company wants to use an integrated card or key system. Whatever you like best, we furnish your new lockers with all the modules you need and with your favourite door lock system. A well thought-out ventilating system with chimney effect as well as a series of useful equipment meet your highest demands and let your guests feel safe for their valuables while staying in your facilities.



Our lockers enjoy great popularity with public facilities such as swimming pools, saunas or sports venues. But also private business people, for example the owners of a physiotherapeutic practice or a start-up dancing school, are enthusiastic about our lockers.



Detailed model descriptions and pictures can be found in our technical data bulletins.

  • Eine sehr hohe mechanische Belastbarkeit, Widerstandsfähigkeit gegen Kratzer, keine Einbeulungen.
  • Resistent gegen Feuchtigkeit und Wasser, sowie eine sehr hohe chemische Beständigkeit u.a. gegen aggressive Reinigungs- und Desinfektionsmittel, Formalin und auch jodhaltige Substanzen.
  • Oberfläche unifarben, keimreduzierend u.a. auch bei antibiotikaresistenten Bakterienstämmen (MRSA).
  • Montage auf Metallständerwerk, Beton- und Mauerwerkswände sowie vor Leichtbau- und Brandschutzwänden.

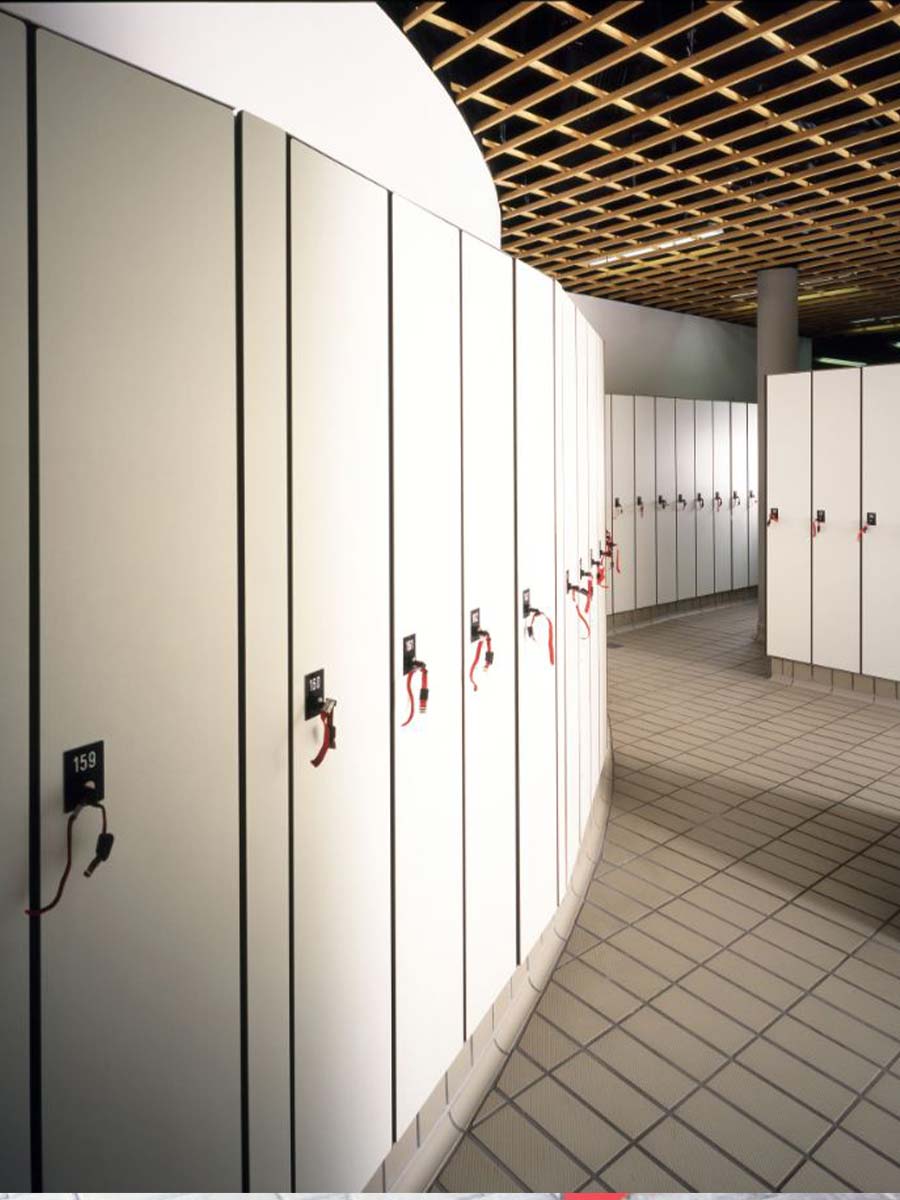

SKV 1

SKV 1

The System



Body made from HPL compact sheets, partitions between compartments from 25 mm composite board with interior aluminium reinforcement, free of FCKW polystyrole rigid foam, outside 2,5 mm HPL compact sheet, user-friendly through smooth locker interior, especially easy and fast cleaning possible, almost burglar-proof due to robust partition.

Locker height

2000 mm, base or plinth on site included

Compartment width

300 mm grid
Special grids at additional cost: 250, 275, 325, 350, 400 or 450 mm.
Lockers with z-shaped door have 350, 400 or 450 mm grids.

Locker depth

495 mm on the inside, 525 on the outside; double block – back to back – 1050 mm on the outside.

Construction

modular construction system in rows of any length. Additional costs for adapter pieces, blind compartments, end walls and back panel lining. Solitary compartment or solitary row with 2 compartments at additional cost. Doors DIN on the left side (at additional cost).

Locker body

made of white waterproof HPL compact sheets in accordance with DIN EN 438, with raw matt surface structure. Back panel 4 mm, lid 6 mm, intermediate shelf 8 mm with rounded front edge. Intermediate shelves are embedded in the partition. Underbody made of HPL 6 mm in the colours white or light-grey pepper.
Underbody and intermediate shelves with slope to the front. Partitions and side panels from 25 mm composite board with interior aluminium reinforcement, free of FCKW polystyrole rigid foam, outside 2,5 mm HPL compact sheet.

End and back panels made of aluminium anodized in natural colour

z-shaped floor of types 26 to 29 8 mm thick.

Locker door

13 mm HPL compact sheet according to DIN EN 438 with black edge, surface melamin resin-coated, colour according to DOMO colour chart. Edges and corners rounded and accident-proof. Doors DIN right-hinged. Concealed hinges made of stainless steel mounted on the inside, 3 hinges for types 10 to 18, 2 hinges for types 20 to 60, no visible screws on the outside.
Each door is fitted with a plastic number plate with engraved door number and a robust door stop.

Direct engravings (no. 117) are possible at additional cost. Each door is prepared for a lock of your choice (door lock rf. TB 334).

Locker doors of type 10 to 18 and 26 to 29 are fitted with an intrusion protection.

Both double-leaf doors of locker types 12, 14, 16 and 18 have a rebate stop.

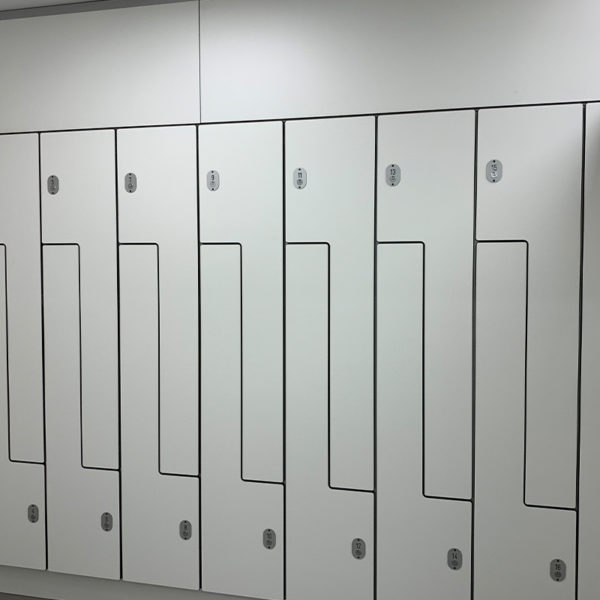

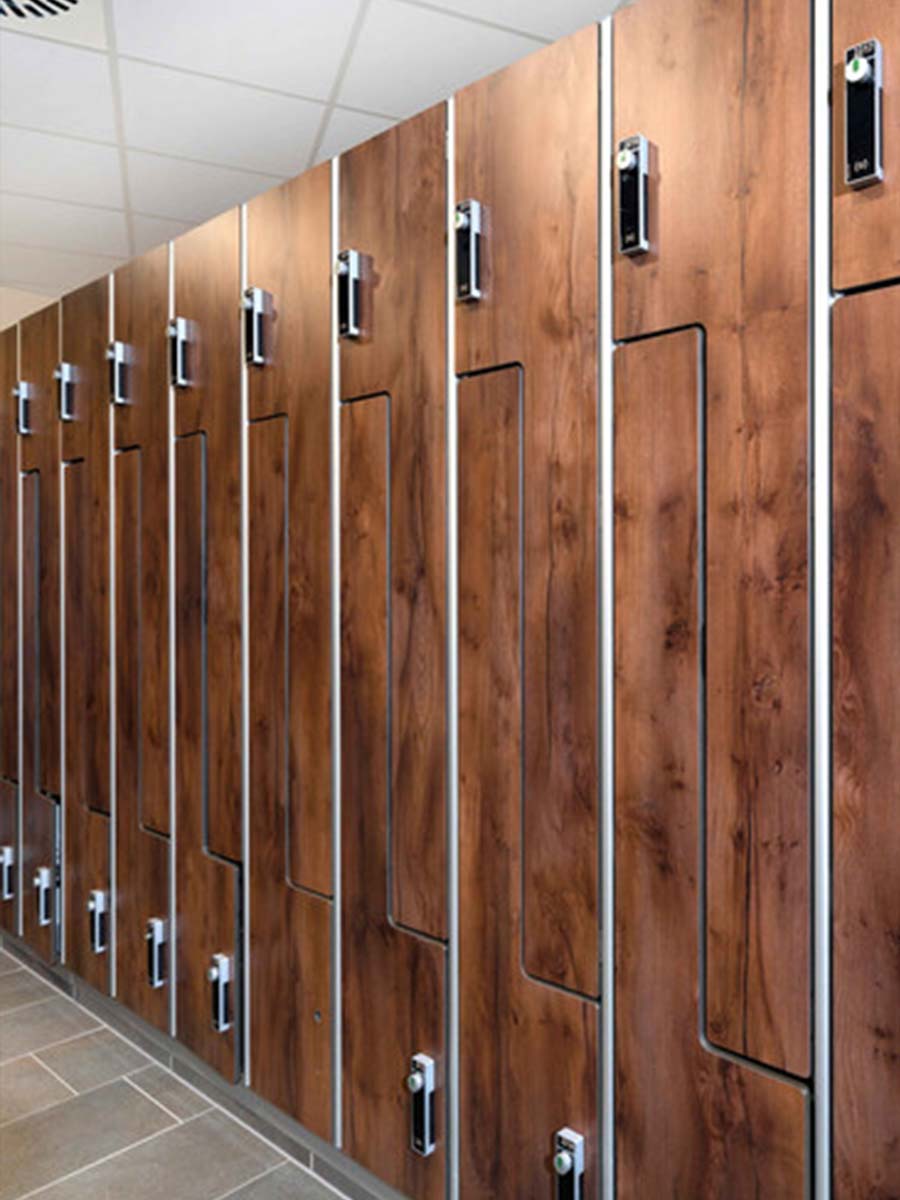

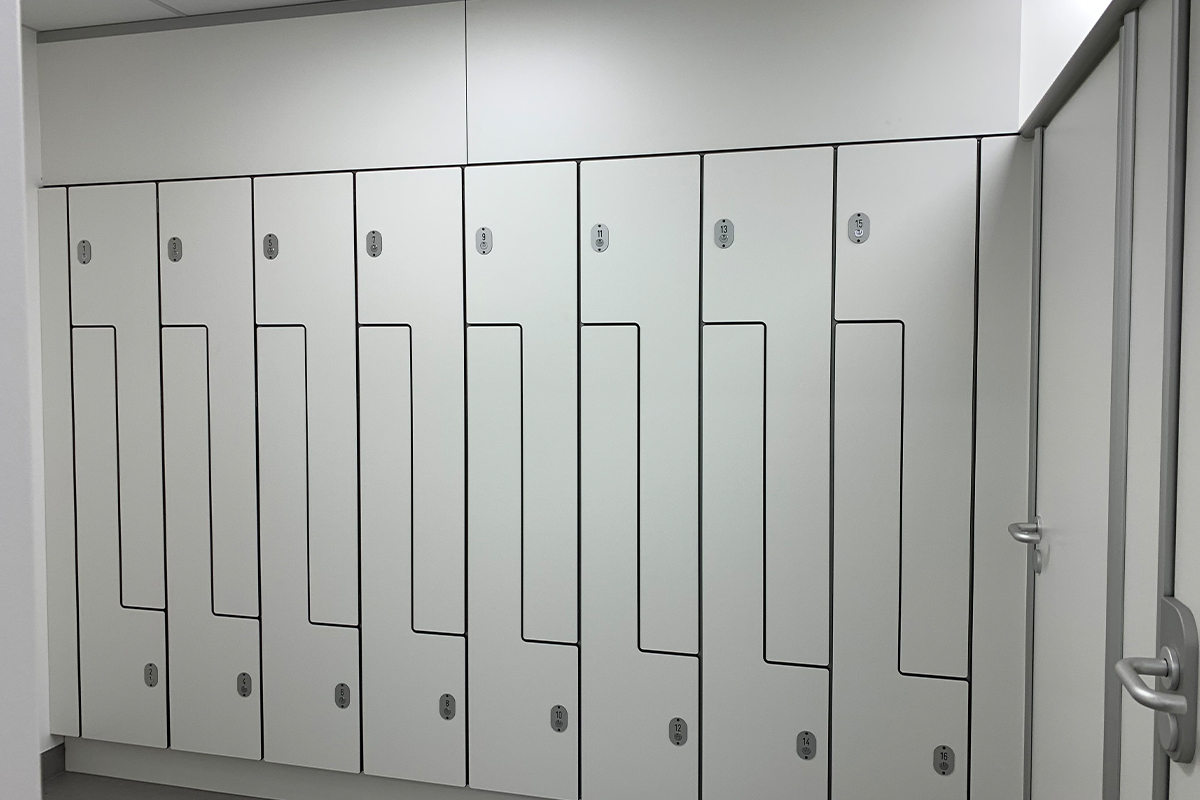

The upper door of the z-shaped doors of locker types 26, 27, 28 and 29 is DIN right-hinged and the lower door is DIN left-hinged.

Equipment

Hat shelf made of 2 aluminium clothes rails anodized in natural colour, with grey sliding hooks made of unbreakable polyamid, 2 hooks per compartment for the types 10 to 25, 30 and 31. 1 hook per compartment for the types 26 to 29 as well as for compartment width 250 and 275 mm. For grids 350 and 400 mm 3 hooks, for grid 450 mm 4 hooks per compartment.
Extra equipment and accessories rf. TB 334.

Ventilation system

Flue effect due to 4 ventilation panels in the back panel, in all lockers except types 40 to 60, in combination with a recess in the underbody. Perforated areas in the underbody for especially good ventilation at additional cost.

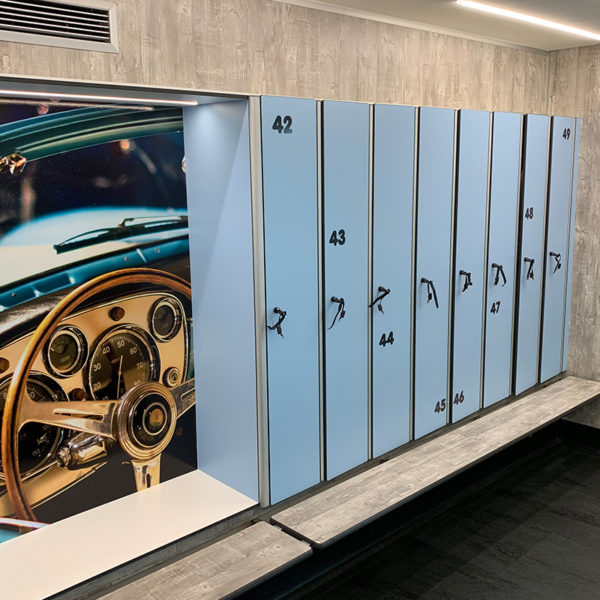

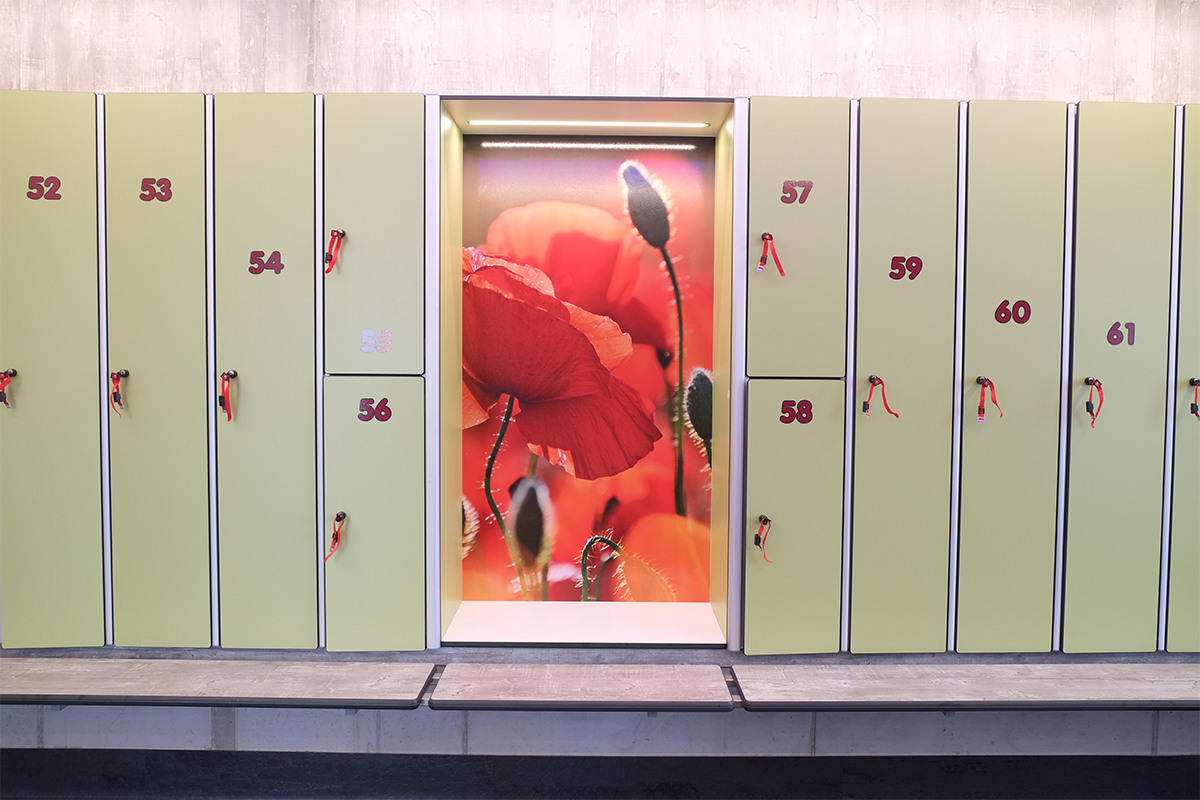

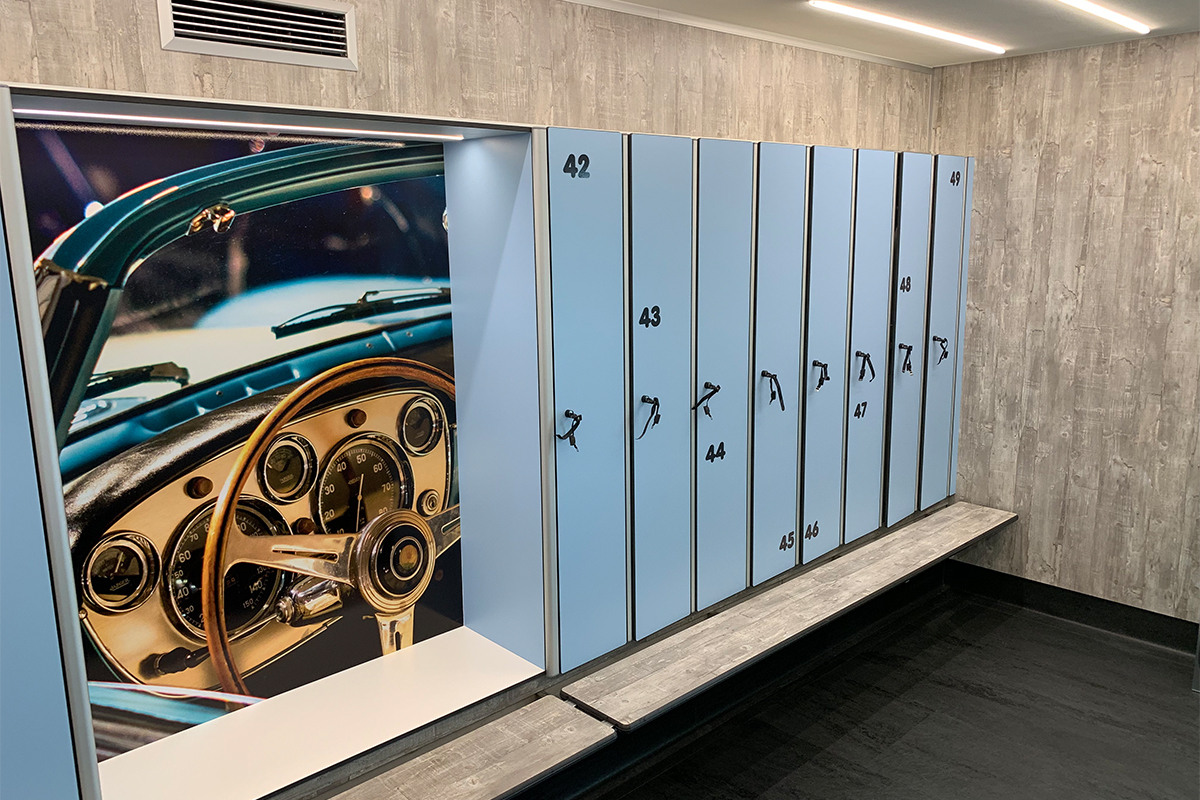

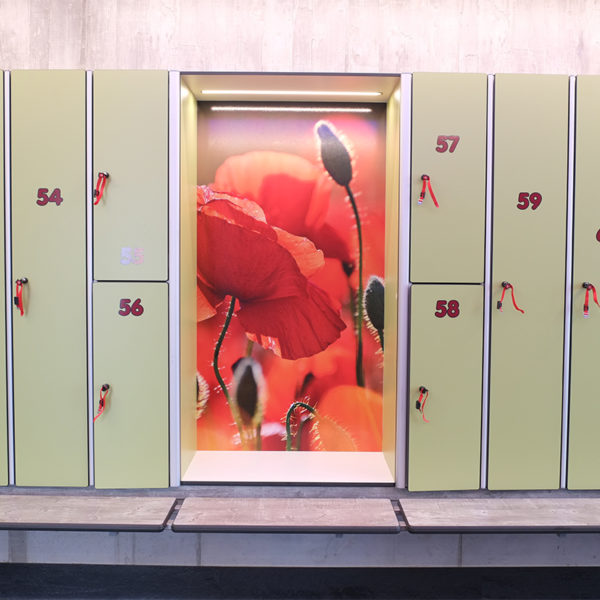

SKV 2

SKV 2

The System



Body made from HPL compact sheets with aluminium profile system between the doors as posts, rounded on the inside as well as the outside. The post profiles between the doors in combination with a special anti-intrusion system protect against forcible opening.

Locker height

2000 mm, base or plinth on site included.

Compartment width

300 mm grid.
Special grids at additional cost: 250, 275, 325, 350, 400 or 450 mm.

Locker depth

495 mm on the inside, 525 mm on the outside; double block – back to back – 1050 mm on the outside.

Construction

modular construction system in rows of any length. Additional costs for adapter pieces, blind compartments, end walls and back panel lining. Solitary compartment or solitary row with 2 compartments at additional cost.
Doors DIN on the left side (at additional cost).

Locker body

made of white waterproof HPL compact sheets in accordance with DIN EN 438, with raw matt surface structure, with aluminium profile system anodizrd in natural colour or powder-coated according to bright RAL colour (at additional cost), between the doors as posts. Back panel 4 mm, lid and partition 6 mm. Intermediate shelf 8 mm with rounded front edge. Underbody made of HPL 6 mm in the colours white or light-grey pepper.
Underbody and intermediate shelves with slope to the front. Back panel profiles made of aluminium. Solitary rows of lockers with end walls and rounded side wall profiles (at extra charge). z-shaped floor of types 26 to 29 8 mm thick.

Locker door

13 mm HPL compact sheet according to DIN EN 438 with black edge, surface melamin resin-coated, colour according to DOMO colour chart. Edges and corners rounded and accident-proof. Doors DIN right-hinged. Concealed hinges made of stainless steel mounted on the inside, no visible screws on the outside, 3 hinges for types 10 to 18, 2 hinges for types 20 to 60.
Each door is fitted with a plastic number plate with engraved locker number and a robust door stop.

Direct engravings (no. 117) are possible at additional cost. Each door is prepared for a lock of your choice (door lock rf. TB 334).

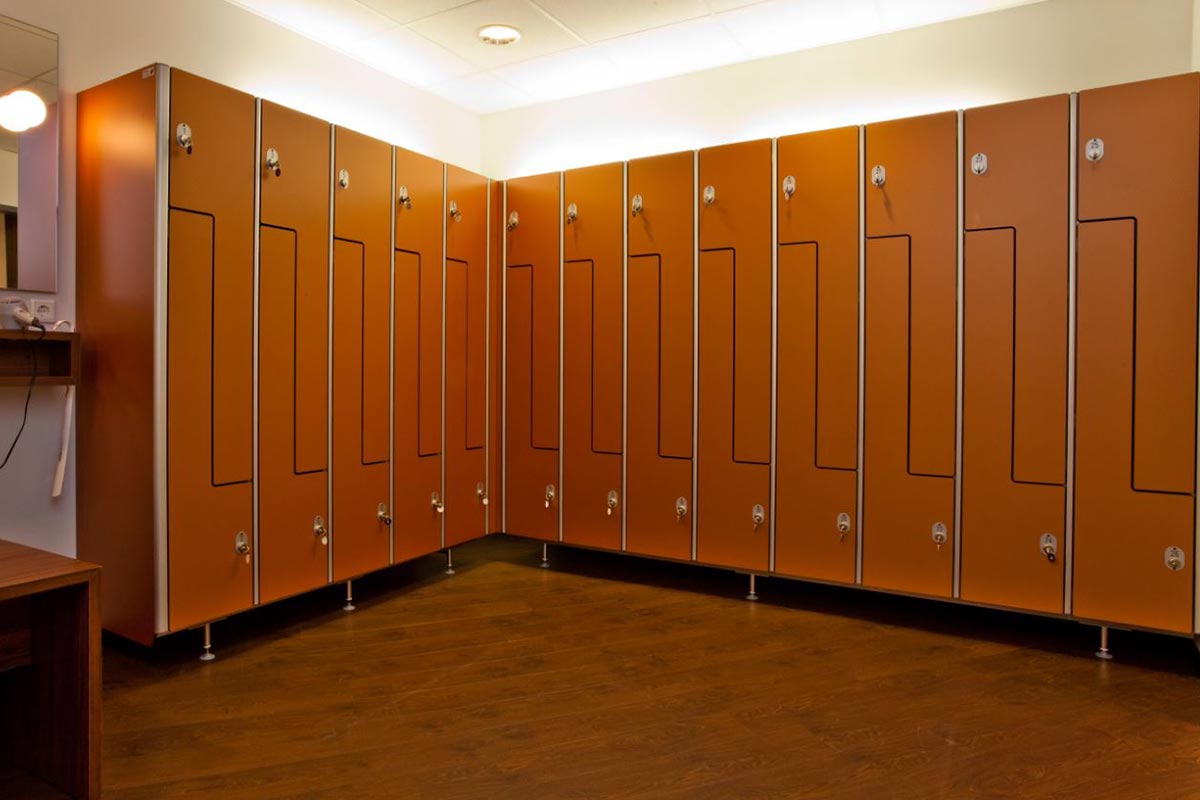

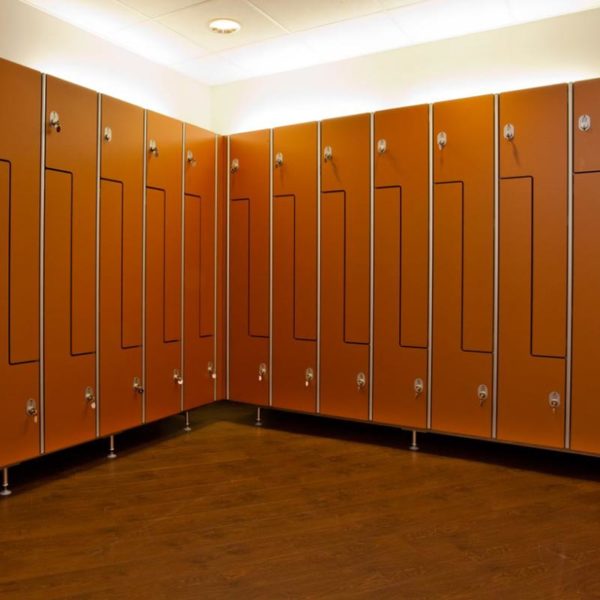

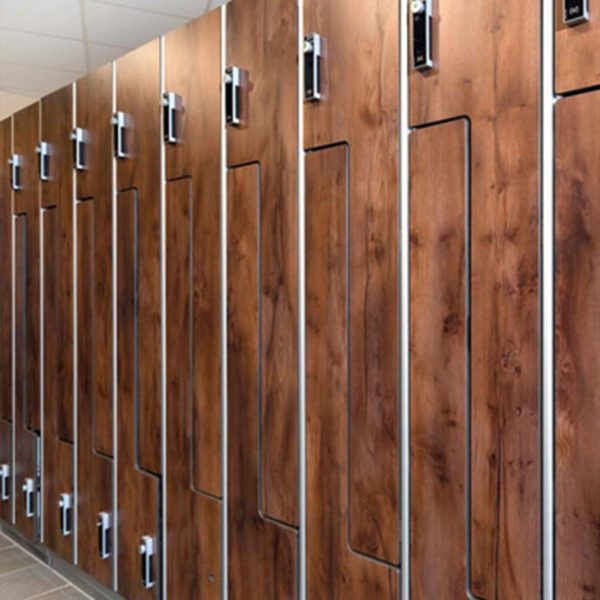

All locker doors with the exception of types 30 to 60 are fitted with an intrusion protection. Both double-leaf doors of locker types 12, 14, 16 and 18 have a rebate stop. The upper door of the z-shaped doors of locker types 26, 27, 28 and 29 is DIN right-hinged and the lower door is DIN left-hinged.

Equipment

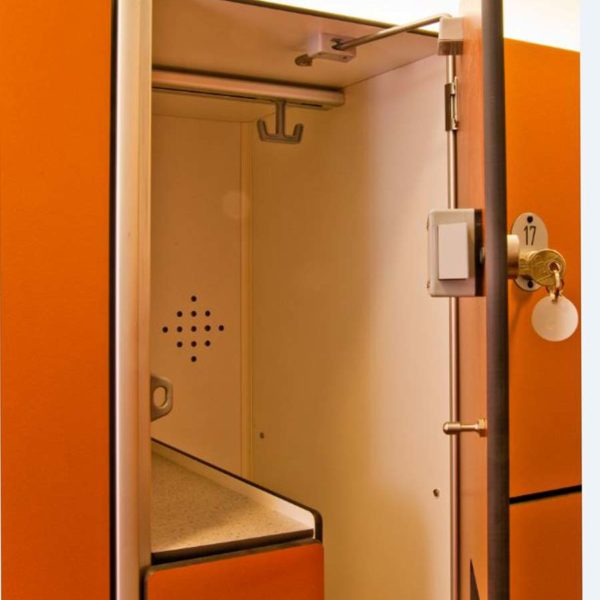

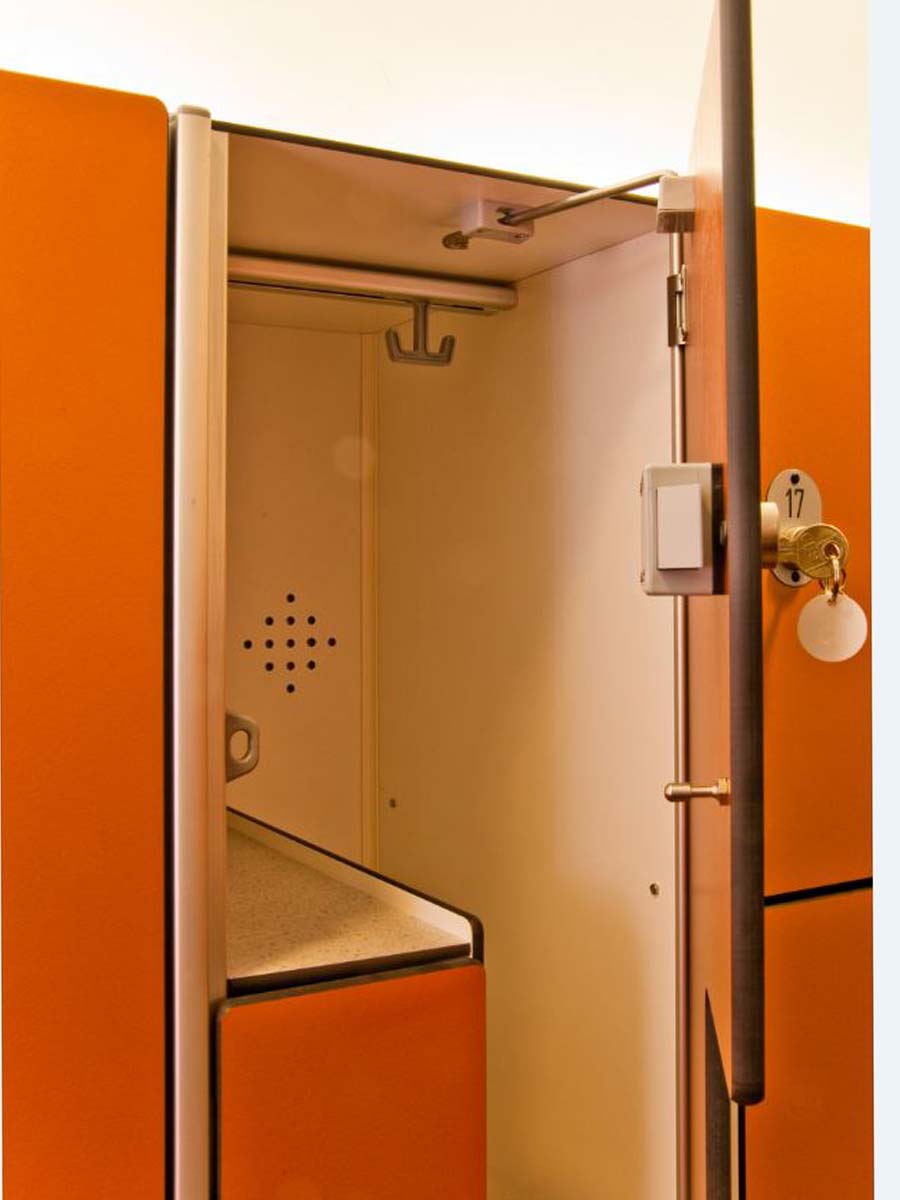

Hat shelf made of 2 aluminium clothes rails anodized in natural colour with grey sliding hooks made of unbreakable polyamid, 2 hooks per compartment for the types 10 to 25 and 30. 1 hook per compartment for the types 26 to 29 as well as for compartment width 250 and 275 mm. For grids 350 and 400 mm 3 hooks, for grid 450 mm 4 hooks per compartment.

Ventilation system

Flue effect due to 4 ventilation panels in the back panel, in all lockers except types 40 to 60, in combination with a recess in the underbody.
Perforated areas in the underbody for especially good ventilation at additional cost
