Sanitary cabins – used by everybody!

GHK DOMO’s sanitary cubicles are made for all purposes and premises. Differently constructed models are designed for conditions in dry as well as in wet rooms. Doors, walls, fittings and equipment are coordinated to their various uses as toilet, shower and changing cubicles in public, non-profit and private and private institutions.

Constant hard wear requires materials of high quality and resilience, sanitary rooms which are easy to handle and to clean – alle characteristics united in GHK DOMO’s sanitary cubicles.

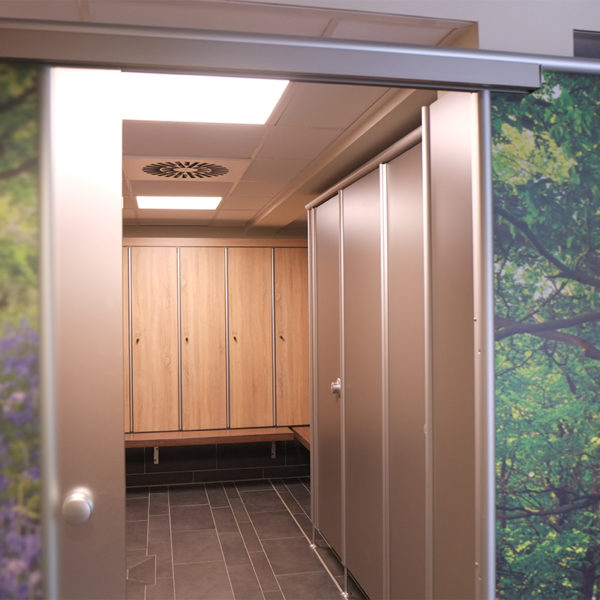

Changing rooms
The changing area – at the heart of every leisure swimming facility

Changing rooms
The changing area – at the heart of every leisure swimming facility

Das System



The changing area – either as communal rooms or private cubicles – functions as a natural boundary between the reception and the actual pool of public as well as private facilities.



Most providers don’t want to do without single changing cubicles nowadays as they present minimum standard. Just as sanitary cubicles or washing, hair-drying and baby changing areas the changing cubicles have to be simple, reliable and safe to handle for the client and offer a wide choice of equipment, type and colour scheme to the provider.



Our melamin coated 13 mm HPL compact sheets are specifically made for wet rooms and are unsusceptible to changing climatic conditions. The water-proof surfaces are easy to clean and hold up to all demands because of their high resilience – they are shockproof and unbreakable.



Changing cubicles HPL compact – Model KV 1 and KV 2:

Modell KV 1

aluminium profiles, legs and fittings anodized in natural colour.

Modell KV 2

aluminium profiles and fittings powder-coated, in RAL colours at additional cost. Legs anodized in natural colour.

Construction height

2020 mm, 150 mm ground clearance included.

Model

as well as doors and walls as described in model specific technical manual.

Doors

Changing cubicle doors at nominal 660 mm, clearance 540 mm.
Changing cubicles with Steigeband type 01 130 degrees and finger pinch protection, for automatic closing the door or holding it open at about 130 degrees aperture angle.

If desired, 3 Steigebänder type 02 180 degrees, for automatic closing the door or holding it open.

Fittings

Cubicle doors with DOMO non-turning knob set no. 56 made of polyamid. DOMO central locking no. 164 for inevitable and simultaneous locking of both cubicle doors, consisting of an aluminium tube through the cubicle with nylon operating levers on the inside and well visible vacant/occupied display on the outside. Middle guide at the tubular shaft holder of shelf no. 307.
Emergency unlocking by hexagon socket screw key SW 4.

Colours

Aluminium tube and holder anodized in natural colour, operating lever black or white, Vacant/occupied display and doorknob black, white, red or grey. Central locking below bench no. 211 (at additional cost) with big vacant/occupied display at height of bench for simultaneous locking of both cubicle doors.

Recommended standard attachments

at additional cost if not explicitly included in offer or specification of prices:
2 polyamid coat hooks no. 183.

1 crystal mirror with double glazing no. 177, 300 x 400 mm with cut edges.

1 bench no. 302, 250 mm deep made of HPL compact sheet 13 mm in colour shade of cubicle, at front edge reinforced to 26 mm and rounded, with subframe tubes and consoles.

1 shelf no. 307 for central locking no. 164, through the whole depth of the cubicle, made of HPL compact sheet 13 mm with rounded front edge and corners, 80 mm wide, necessary supports included.

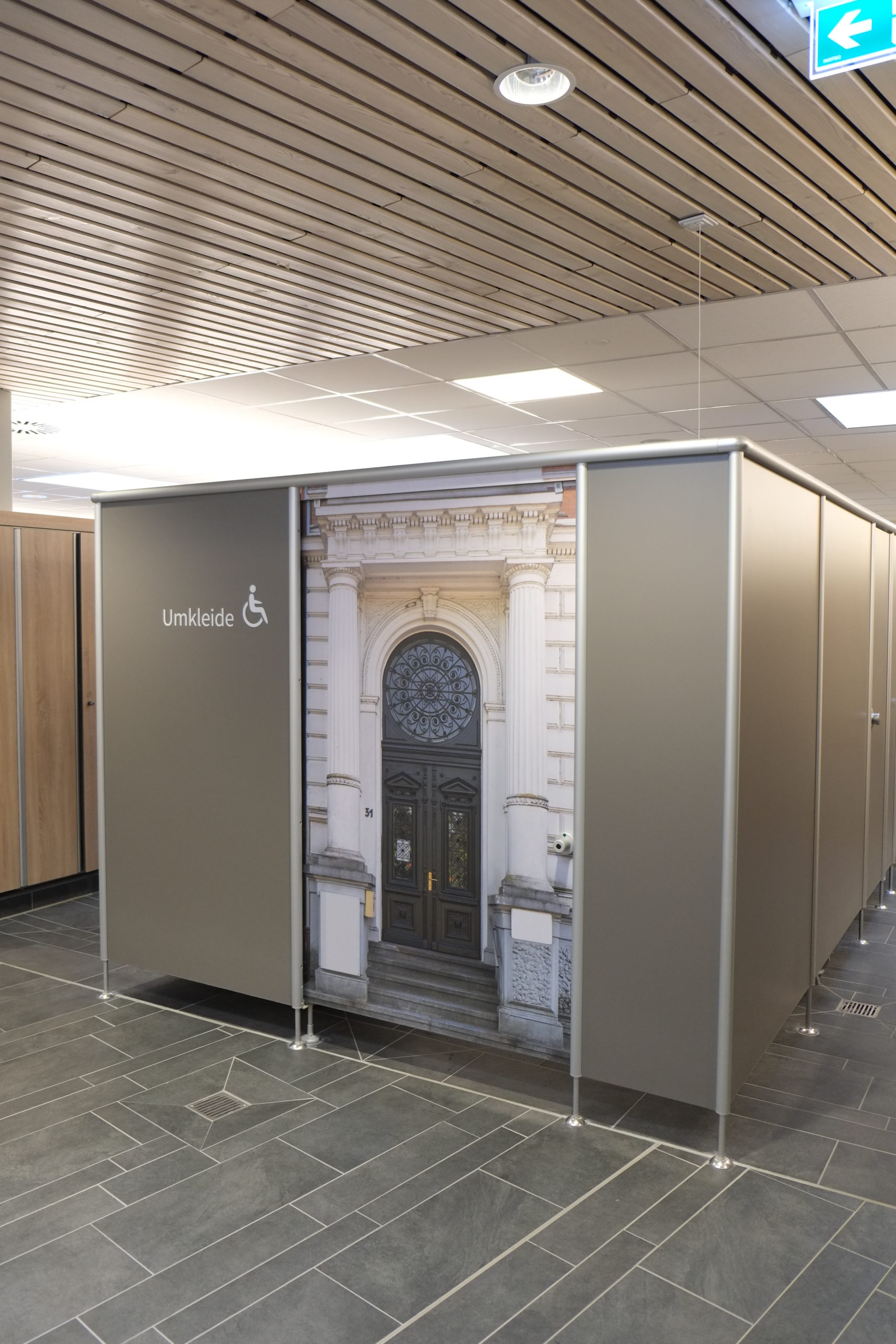

Recommended attachments for changing cubicles for disabled persons

at additional cost if not explicitly included in offer or specification of prices:
2 polyamid coat hooks no. 183.

1 crystal mirror with double glazing no. 242, 400 x 600 mm with cut edges, bonded tob e theftproof.

1 bench no. 305, made of HPL compact sheet 13 mm with subframe tubes and consoles or bench clips no. 364, length up to 1500 mm, width 400 mm.

1 HPL shelf no. 307, 400 mm long.

1 nylon assist grip no. 257 , 200 mm long with 2 rosettes.

Notches for exposed pipes, protruding window sills, reveals etc. found at final measurements or assembly are charged additionally.

Subject to technical changes.

KV 1 and KV 2

KV 1 und KV 2

The System



Sanitary cubicles HPL-Compact – Modell KV 1, KV 2

Modell KV 1

Aluminium profiles, legs, lock cases and metal bands anodized in natural colour

Modell KV 2

Aluminium profiles and lock cases in glossy RAL-colours shade. Legs anodized in natural colour. Metal bands anodized or white.

Construction high

2020 mm, 150 mm ground clearance included

Model

Made from 13 mm HPL compact sheets, according to DIN EN 438, melamin surface in shade according to colour chart, exposed edges and corners with 10 mm radius rounded to be accident-proof, colour black.
Supported vertically at the sides and at the top in multi-chamber hollow aluminium frame with strong cross-section.

Doors

frameless, with 4 round corners radius 10 mm, driving bluntly into aluminium profiles of front walls, with inlaid seal at the closing side for acoustic insulation.
Cubicle doors at nominal 550 or 625 mm, clearance 55 mm smaller.

Anteroom doors at nominal 750 mm, clearance 695 mm.

Doors in different sizes up to 900 mm are available at additional cost.

Toilet and changing room cubicles with Rising Hinges type 01 130 degrees and finger pinch protection, for automatic closing the door or holding it open at about 130 degrees aperture angle, for inwards opening doors.

If desired, 3 Steigebänder type 02 180 degrees, for automatic closing the door or holding it open.

Shower cubicles with anteroom, 3 Steigebänder type 02 180 degrees, for automatic closing the door or holding it open.

Walls

one-piece up to 1700 mm width, more than 1700 mm two pieces with joining profile and leg at about 1260 mm. Two pieces, if desired.

Fittings

OMO-Conic-KV fittings vacant/occupied made of anodized aluminium in natural colour, designed expicitly for KV-partition facilities (on the outside doorknob with big red/white disc behind Plexiglas and emergency unlocking hexagon socket for SW 4, on the inside one-hand turning knob with direction indicator for direct locking of the door).
More fittings available at additional cost: DOMO-Conic + DOMO-Polyamid fittings in black, white, red or grey, vacant/occupied fitting no. 51 (on the outside doorknob, on the inside milled turning knob).

PZ design in DOMO-Conic non-turning knob on both sides, lock cases, profile cylinder rosettes in anodized aluminium and PZ bolt lock for 62 mm lock cylinder or DOMO knob set PZ punched made of polyamid for 80 mm lock cylinder with anodized lock cases and PZ bolt lock.

Anteroom door with non-turning knob no. 56 in Aluminium or polyamid, no lock, on both sides.

Equipment

Each cubicle door can be equipped with one coat hook no. 183 in the colour of the fittings or no. 438 in stainless steel, which also functions as a stop for inwards opening door.

Ground connection

Adjustable screw-on legs made of 18 mm aluminium tube with cover rosette. If desired and at additional cost: legs made of 18 mm brushed stainless steel with stainless steel cover rosette or aluminium leg with stainless steel cover rosette.

Wall connection

Aluminum profile, also functioning for evening out construction tolerances.

Upper connection

Strong aluminium head profile above front, side walls and two-piece partitions.
In the area of doors and passages the lower groove of the head profile is covered by another profile, also functioning as a distancing rail.

Additional charges

Notches for front-end installation, exposed pipes, protruding window sills, reveals etc. found at final measurements or assembly are charged additionally.

Special heights

Special heights are available:
No. 87 facility height 2170 mm including 150 mm ground clearance.

No. 88 facility height 2020 mm without ground clearance.

The adjustable legs cover a facility height between 1990 and 2070 mm. The height of the wall elements (1850 mm) stays the same. Subject to technical changes.

Subject to technical changes

Inverted facility

Inverted facility

The System



The inverted facility is characterized by a very strong head profile making the use of legs superfluous. Thus, the facility does not only look elegant but is significantly easier and faster to clean which subsequently reduces costs.



Up to 4 cubicles in a row are possible without problems. More cubicles or facilities with side walls require a supporting leg moved rearward. The walls have to be solid or reinforced. Simple plasterboard constructions are not sufficient.

KG – the flush mounted variant

KG – the flush mounted variant

The System



Sanitary cubicles HPL compact (toilet cubicles) model KG

construction height

2020 mm, 150 mm ground clearance included

Model

Made from 13 mm HPL compact sheets, according to DIN EN 438, melamin surface in shade according to colour chart, exposed edges and corners rounded to be accident-proof, colour black. Flush-mounted front set in strong round aluminium head profile for stabilization.

Colours

Aluminium profiles anodized in natural colour or powder-coated in glossy RAL-colours shade at additional cost. Legs anodized in natural colour.

Doors

frameless, with round corners, driving bluntly into aluminium profiles of front walls, with inlaid seal at the closing side for acoustic insulation.
Cubicle doors at nominal 550 or 625 mm, clearance 20 mm smaller.

Anteroom doors at nominal 750 mm, clearance 730 mm.

Doors in different sizes up to 900 mm are available at additional cost.

Toilet and changing room cubicles with 3 Rising Hinges type 02 180 degrees for automatic closing the door or holding it open.

If desired, finger pinch protection at the hinge side (at additional cost).

Walls

one-piece up to 1600 mm width, more than 1600 mm two pieces with joining profile and leg at about 1260 mm.

Fittings

Quarter-turns lock, vacant/occupied, according to DOMO colour chart (on the outside with red/white disc and square socket SW 8 for emergency unlocking, on the inside one-hand turning knob for locking the door).
DOMO door knob set no. 56 continuously screwed on, in colour of quarter-turns lock.

More fittings available at additional cost: knob set PZ punched no. 54 with external-mounted lock case and lock striker (on door inside), in colour of quarter-turns lock.

Equipment

Each cubicle door is equipped with one coat hook no. 183 made of polyamid in the colour of the fittings, which also functions as a stop for inwards opening door.

Ground connection

Adjustable screw-on legs made of 18 mm aluminium tube with polaymid cover rosette, in rounded element brackets made of aluminium anodized in natural colour for height adjustment. At additional cost: stainless steel cover rosettes.

Wall connection

Aluminum profile, also functioning for evening out construction tolerances. At additional cost: slanting wall connection.

Upper connection

In the area of doors and passages the lower groove of the head profile is covered by another profile, also functioning as a distancing rail.Notches for exposed pipes, protruding window sills, reveals etc. found at final measurements or assembly are charged additionally.
Facility height at 2170 mm including 150 mm ground clearance.

Special heights available at your request
Subject to technical changes.

Suspended effect

Suspended effect

The System



Floating optics – recessed feet give the impression of a floating system, which looks elegant and makes cleaning easier.

Modell KV 1

Aluminium profiles, legs, lock cases and fittings anodized in natural colour.

Modell KV 2

Aluminium profiles and lock cases in glossy RAL-colours shade. Legs anodized in natural colour. Metal bands anodized or white.

Construction height

2020 mm 150 mm ground clearance included.

Model

Made from 13 mm HPL compact sheets, according to DIN EN 438, melamin surface in shade according to colour chart, exposed edges and corners with 10 mm radius rounded to be accident-proof, colour black.
Supported vertically at the sides and at the top in multi-chamber hollow aluminium frame with strong cross-section.

Doors

frameless, with 4 round corners radius 10 mm, driving bluntly into aluminium profiles of front walls, with inlaid seal at the closing side for acoustic insulation.
Cubicle doors at nominal 550 or 625 mm, clearance 55 mm smaller.

Anteroom doors at nominal 750 mm, clearance 695 mm.

Doors in different sizes up to 900 mm are available at additional cost.

Toilet and changing room cubicles with Rising Hinge type 01 130 degrees and finger pinch protection, for automatic closing the door or holding it open at about 130 degrees aperture angle, for inwards opening doors.

If desired, 3 Steigebänder type 02 180 degrees, for automatic closing the door or holding it open.

Shower cubicles with anteroom, 3 Steigebänder type 02 180 degrees, for automatic closing the door or holding it open.

Walls

one-piece up to 1700 mm width, more than 1700 mm two pieces with joining profile and leg at about 1260 mm. Two pieces, if desired

Fittings

DOMO-Conic-KV fittings vacant/occupied made of anodized aluminium in natural colour, designed expicitly for KV-partition facilities (on the outside doorknob with big red/white disc behind Plexiglas and emergency unlocking hexagon socket for SW 4, on the inside one-hand turning knob with direction indicator for direct locking of the door).
More fittings available at additional cost: DOMO-Conic + DOMO-Polyamid fittings in black, white, red or grey, vacant/occupied fitting no. 51 (on the outside doorknob, on the inside milled turning knob).

PZ design in DOMO-Conic non-turning knob on both sides, lock cases, profile cylinder rosettes in anodized aluminium and PZ bolt lock for 62 mm lock cylinder or DOMO knob set PZ punched made of polyamid for 80 mm lock cylinder with anodized lock cases and PZ bolt lock.

Anteroom door with non-turning knob no. 56 in Aluminium or polyamid, no lock, on both sides.

Equipment

Each cubicle door can be equipped with one coat hook no. 183 in the colour of the fittings or no. 438 in stainless steel, which also functions as a stop for inwards opening door.

Ground connection

Adjustable screw-on legs made of 18 mm aluminium tube with cover rosette. If desired and at additional cost: legs made of 18 mm brushed stainless steel with stainless steel cover rosette or aluminium leg with stainless steel cover rosette.

Wall connection

Aluminum profile, also functioning for evening out construction tolerances. At additional cost: slanting wall connection.

Upper connection

Strong aluminium head profile above front, side walls and two-piece partitions.
In the area of doors and passages the lower groove of the head profile is covered by another profile, also functioning as a distancing rail.

Additional charges

Notches for front-end installation, exposed pipes, protruding window sills, reveals etc. found at final measurements or assembly are charged additionally.

Special heights

No. 87 facility height 2170 mm including 150 mm ground clearance.

No. 88 facility height 2020 mm without ground clearance.

The adjustable legs cover a facility height between 1990 and 2070 mm. The height of the wall elements (1850 mm) stays the same.

Subject to technical changes.
