Find out everything about our medical equipment concept to further improve your work processes and to ensure optimal and safe care. As always, Made in Germany.

OP Cleanroom ceiling

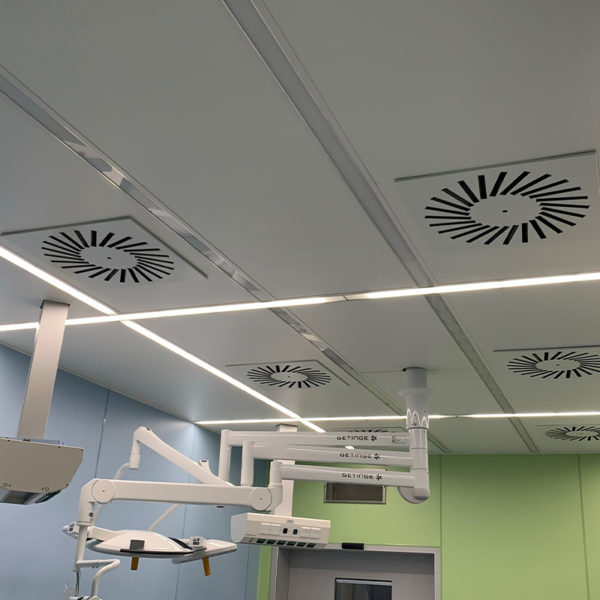

OR cleanroom ceiling

The System

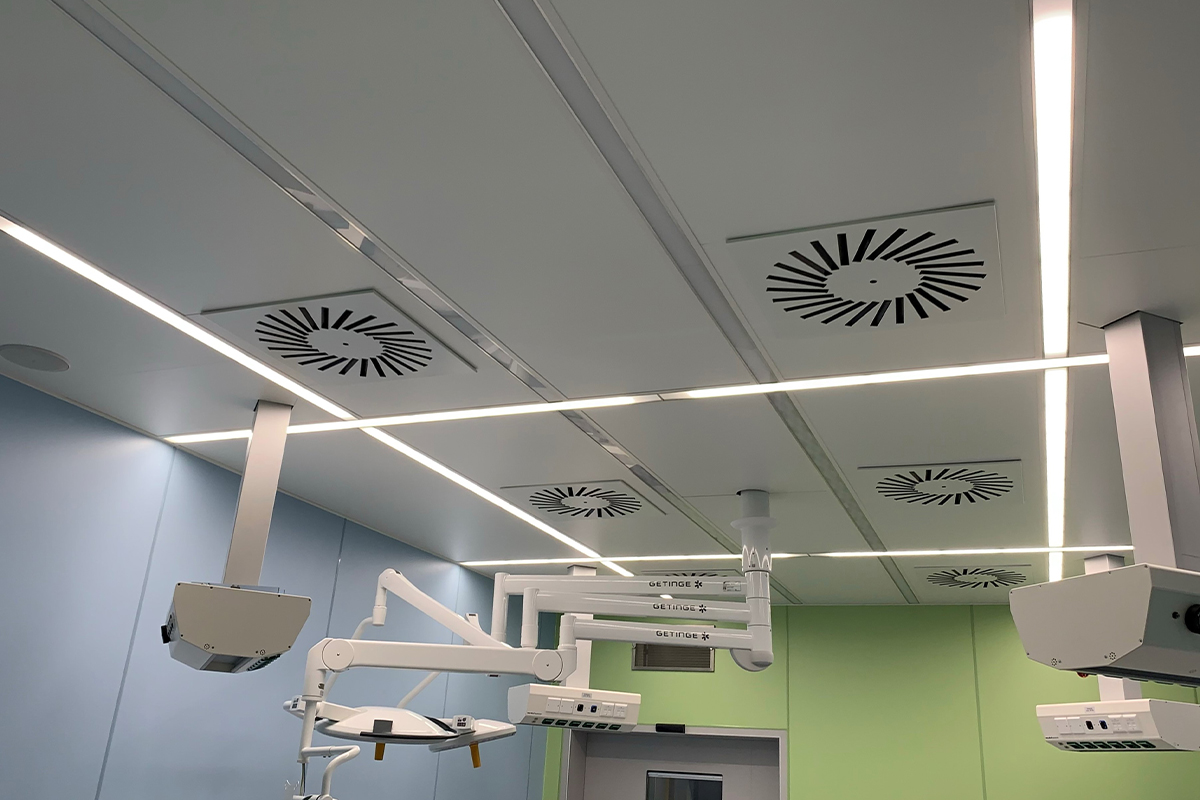

Our OP-cleanroom ceiling belongs to the newest generation. It is installed into the OR as a suspended ceiling and consists of an air supply system, terminal high-efficiency particulate air filters H14 (alternatively H13), in accordance with DIN EN 1822, a pressure corpus made of anodized aluminium or stainless steel including a silencer and circulated-air modules. The circulated air-modules contain – as seen in airflow direction – an intake, an F9 filter in accordance with DIN EN 779, a silencer, ventilators with check valve and an air supply connection. Operating mode: The room air is taken in at the circulated-air modules, here mixed with additional air processed by the air conditioner and transported into the pressure corpus installed above the filter ceiling. Then, the filtered clean air flows into the OR and forms a protected zone. The ideal cleanair output of the ceiling low in turbulence provides a homogenous disperse surface without dead bands.

OP Lighting

OP Lighting

The System

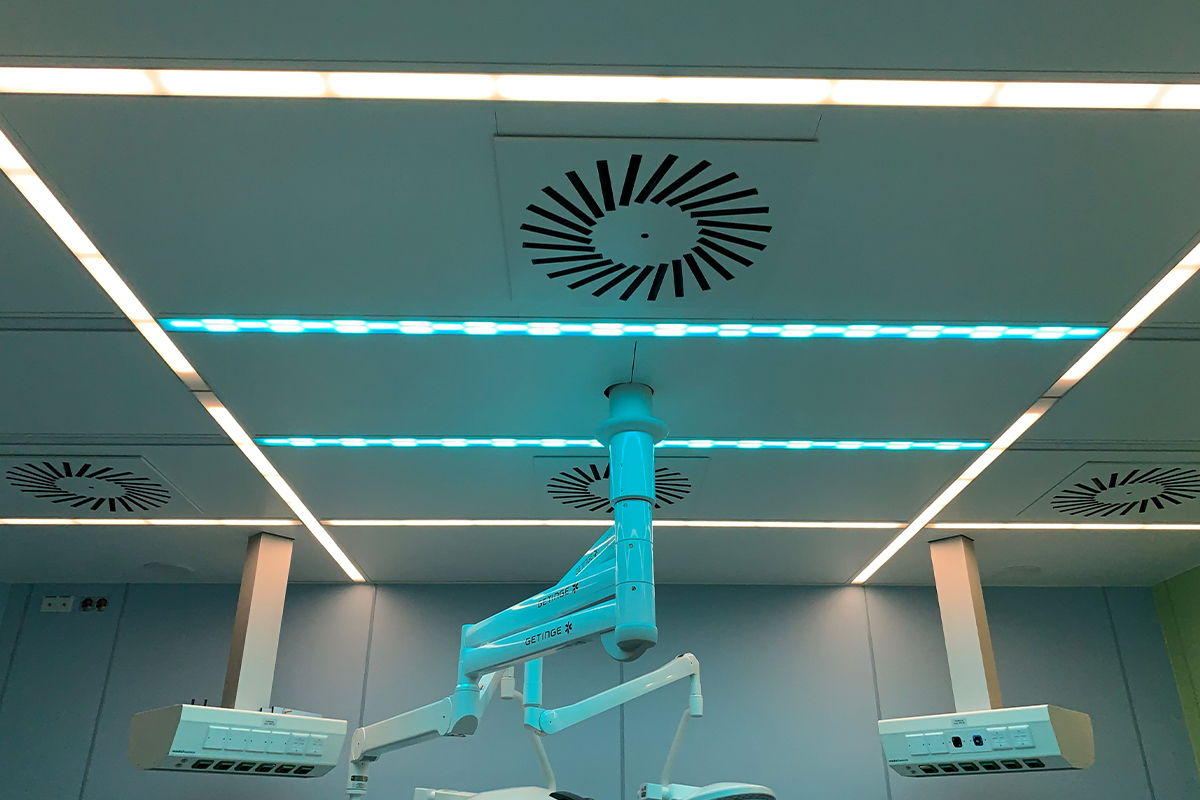

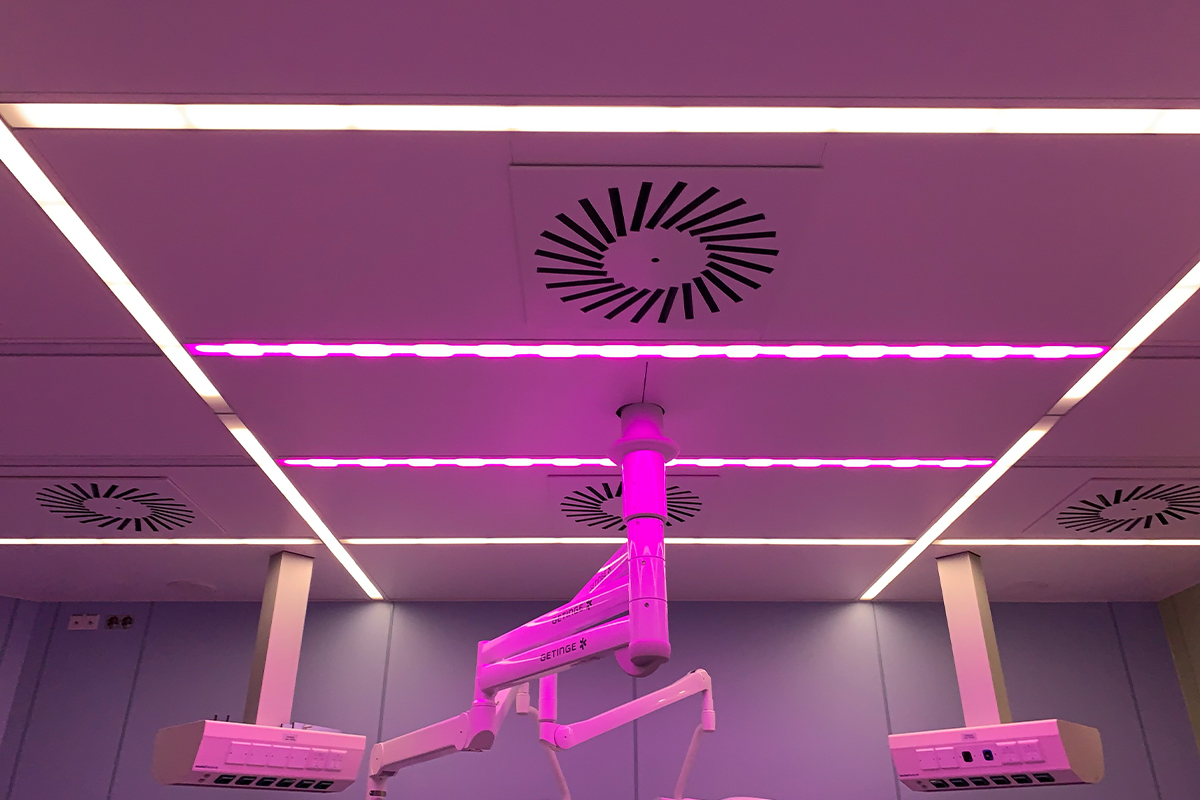

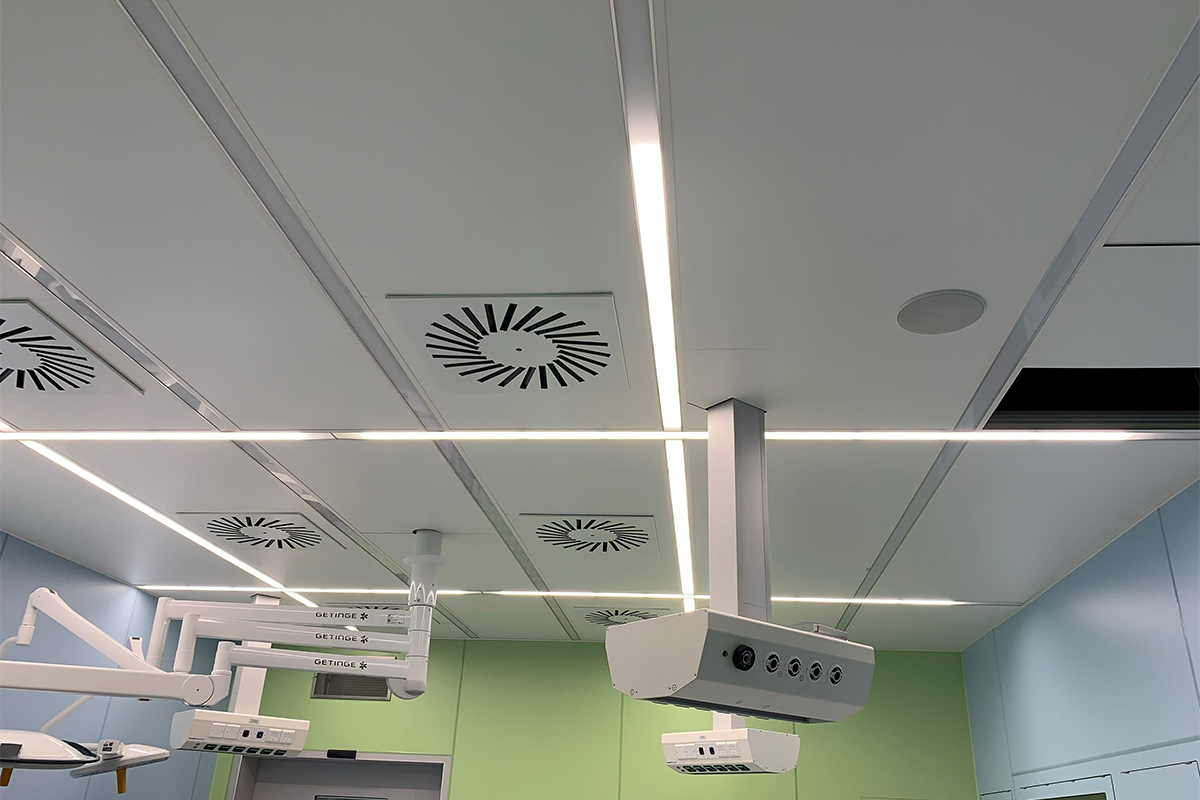

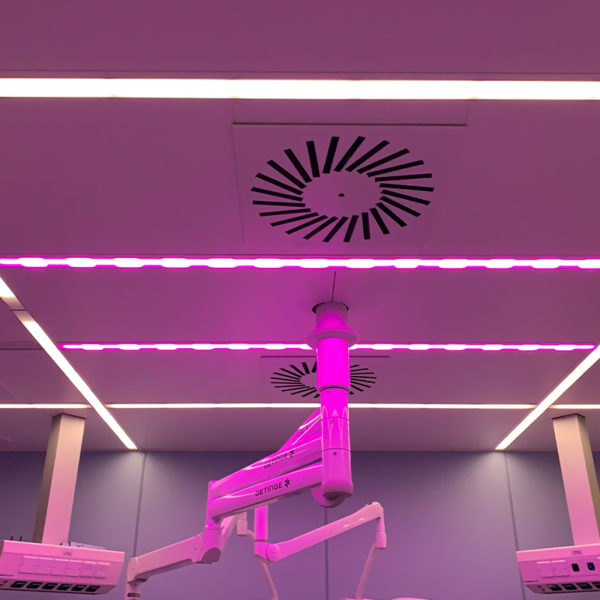

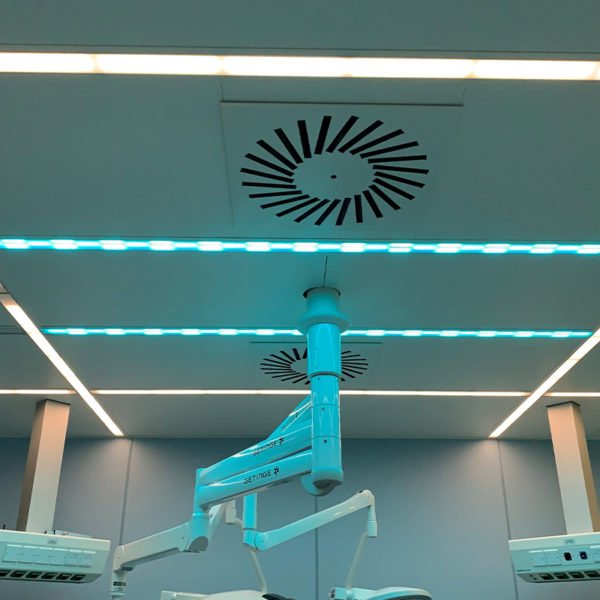

Modern OP lighting is based on LED technology.



Low surface and light temperatures create a low degree of turbulence. Illuminance, illumination of operating fields as well as colour temperature are individually adjustable.

  • long-living
  • low-maintenance
  • reliable
  • economical

Theatre Control Panels

Theatre Control Panels

The System



Visualising. Operating. Indicating. Informing.



Indicator, operator and display panels form the bridge between personnel and technical devices. We offer innovative operating concepts for a safe power supply. All kinds of boards providing optical and acoustical information – from simple display panel over transparency to TouchControlPanel can be integrated into our complete solutions and adjusted to our customers’ requirements.



The portfolio contains solutions tailor-made for different sectors, such as for hospitals and medical premises.

Ceiling supply unit

Ceiling supply unit

The System



Ceiling supply unit

The ceiling supply unit offers a variety of compact and highly ergonomic configurations and takes up little space in the valuable nursing sector. It is flexible and uncomplicated in its use – for more ergonomics



Media bridge

All technical devices known in an OR can be attached to the media bridge with an optimal radius. The OR media bridge can be equipped with all appliances up to the column interfaces in the factory ready for installation.

Media column

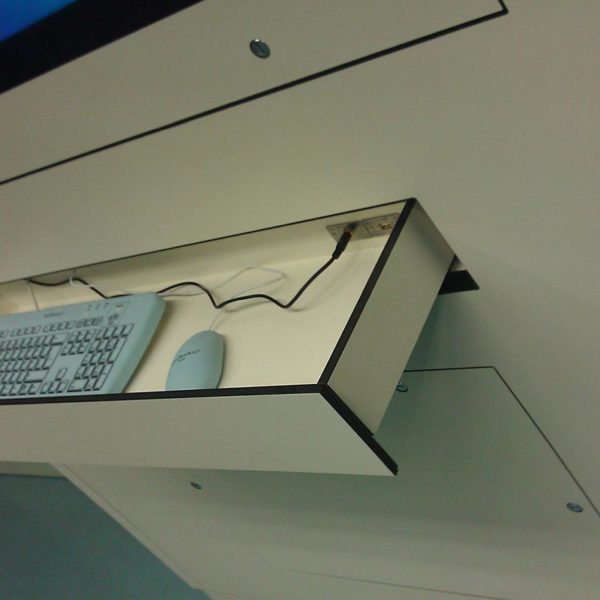

Media column

The System

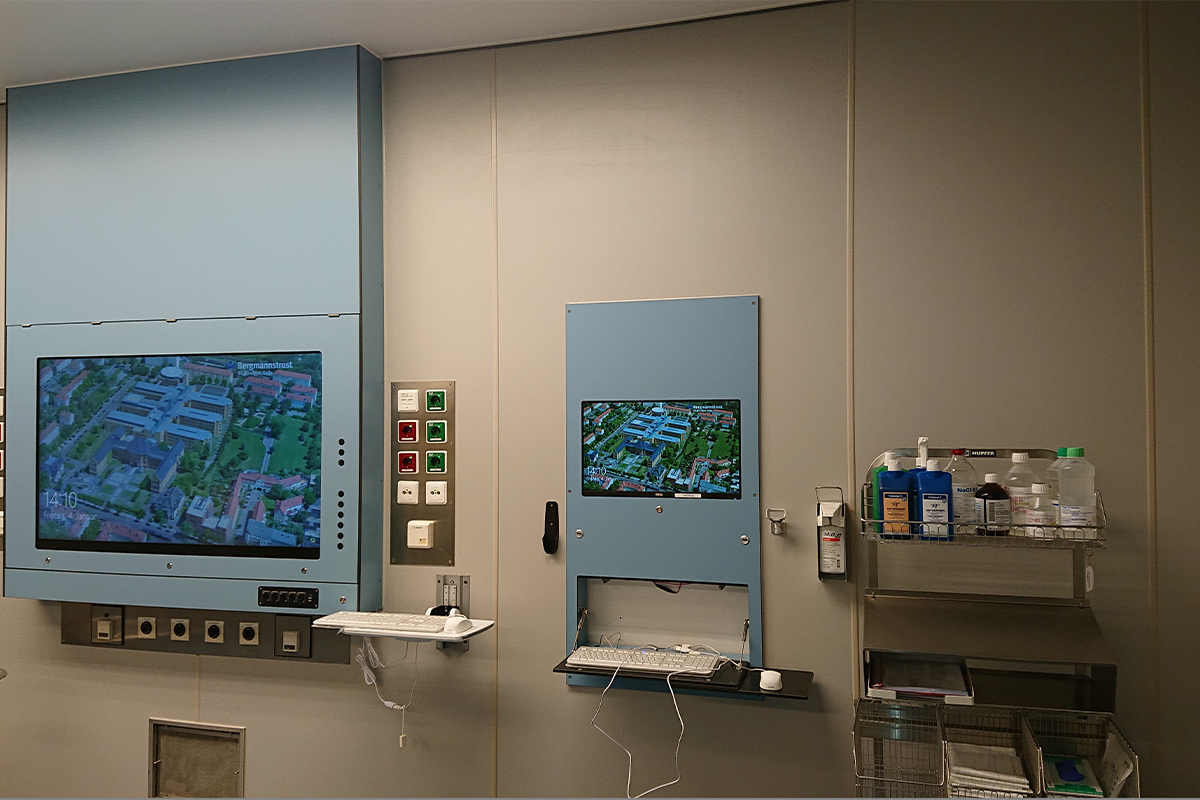

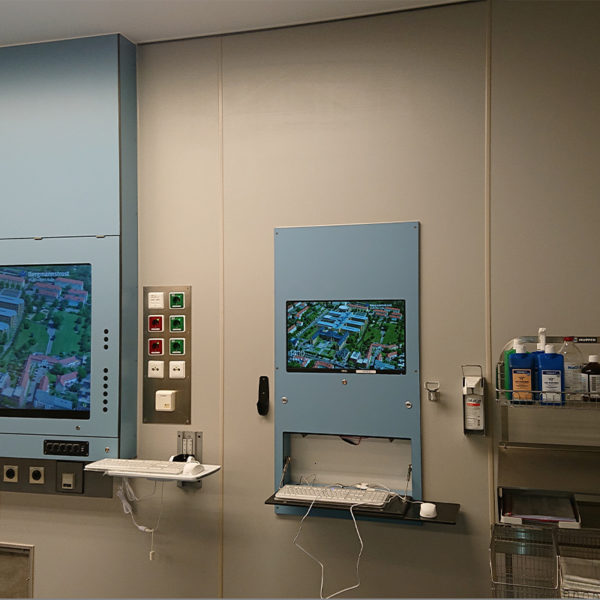

Wall mounting case for installation of medical computers and monitors



OR wall system GHK-OPS

Material: HPL compact boards, Finish anti-bacterial, HPL in accordance with DIN EN 438, Thickness: 10 mm / quality B1



Measurements to demand

For recording your digital OR workflow, for displaying medical information and image data while maintaining highest hygienic and ergonomic standards.



Measurements adapted to flush-mounted wall cabinet



Face made of HPL, frame with glass cut-out, if desired as a hinged window for opening.

Glass panel 6 mm ESG coated

Fittings:

Prämeta barrel hinges

Turn lock with slit triggering

2 gas pressure springs including bores and additional mount to fix the monitor to the front flap



Optional:

LED lighting with light strip 12 V additional to attachment element
Consisting of 2 x 2,5 m light strip in aluminium profile as indirect lightíng
Set into HPL sheets on the sides including mains adapter, control element and inspection opening
Colour of light: warm white, cold white or RGB at customer’s option

Viewers

Viewers

The System



Naturally, digital media have been part of the cleanroom for some time now. However, very often the devices do not comply with the standards for process safety in the cleanroom. GHK DOMO develops and produces image viewing systems which can be installed flush into the wall systems and can therefore be used safely behind a wipe-disinfectable surface.
